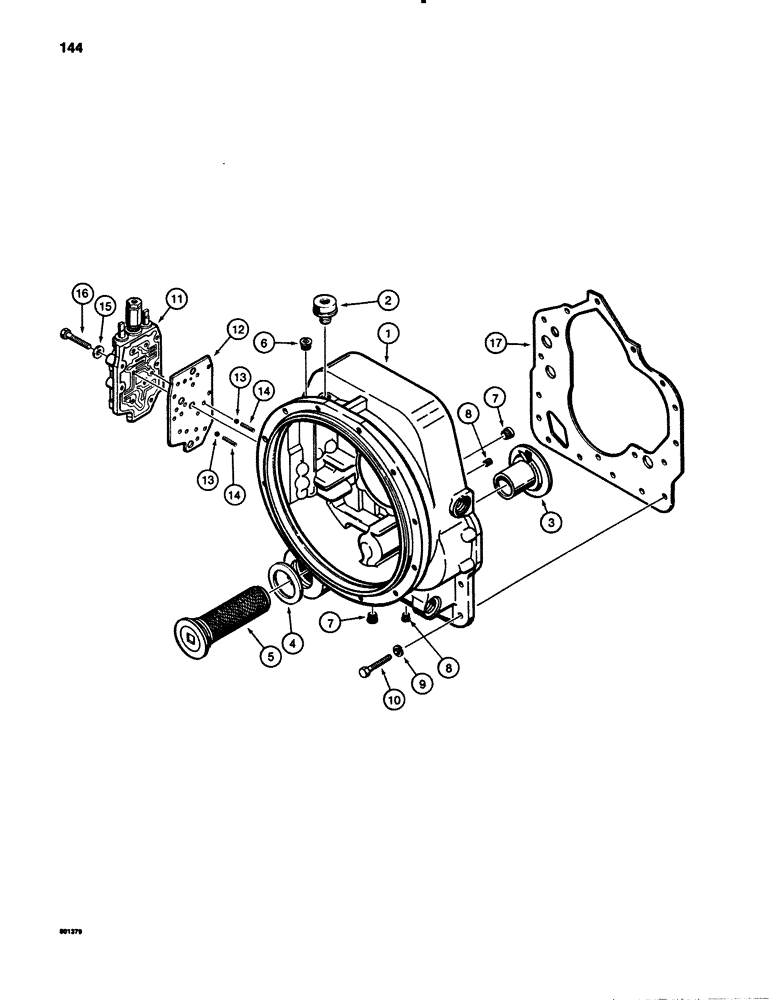

Запчасти Case 780B (144) - TORQUE CONVERTER HOUSING AND CONTROL VALVE (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 17

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 17

1шт.

1

N7135

HOUSING

- torque converter

1шт.

2

N7134

BREATHER

- air, torque converter

1шт.

3

E114312

SLEEVE

- torque converter housing

1шт.

4

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

5

L33482

FILTER SCREEN

SCREEN - filter

1шт.

6

S117872

PLUG

- torque converter housing

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex socket head, 1/2" NPT

2шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8" NPT

2шт.

9

92-7

LOCK WASHER,7/16"

16шт.

10

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

16шт.

11

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - forward and reverse, parts list Figure 160

1шт.

12

E114308

GASKET

- control valve

1шт.

13

211-11

BALL,3/8" Dia

- detent, steel, 3/8"

2шт.

14

E114309

SPRING

- detent

2шт.

15

92-6

LOCK WASHER,3/8"

9шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

9шт.

17

N7138

WASHER

GASKET - torque converter, Serial Range: housing-transmission

1шт.
