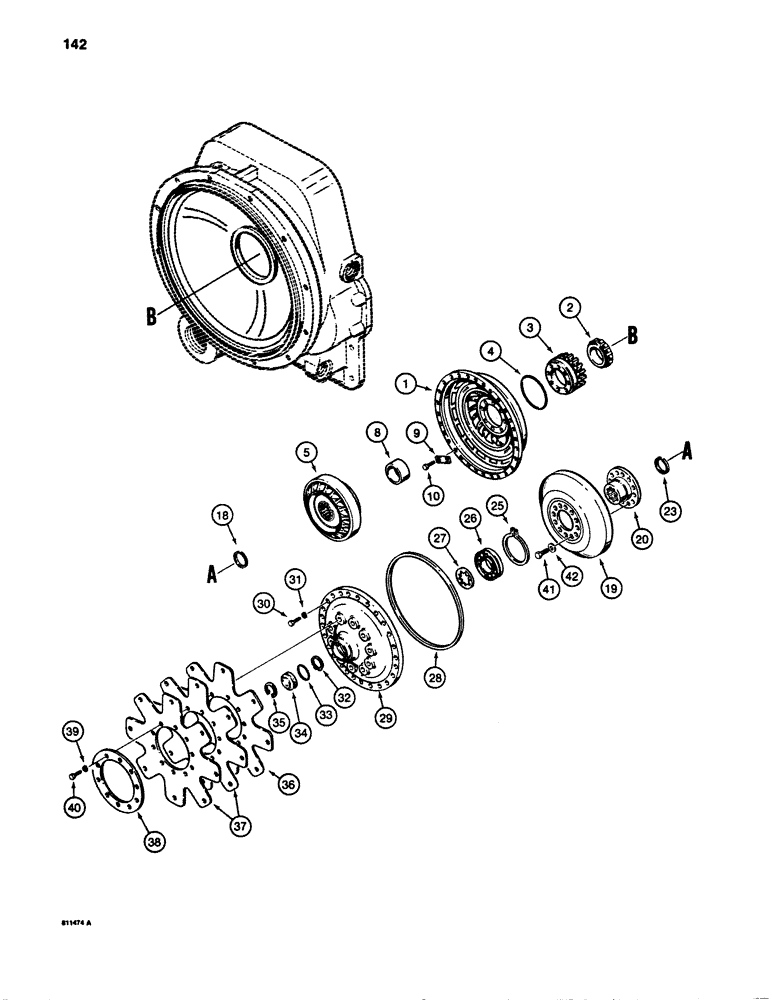

Запчасти Case 780B (142) - TRANSMISSION IMPELLER, TURBINE, AND FLEXPLATE (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 42

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 42

1шт.

1

N7192

IMPELLER

- torque converter

1шт.

2

N7257

BEARING, ROLLER, CYL,45mm ID x 74.94mm OD x 18.99mm

BEARING - impeller hub

1шт.

3

N7191

GEAR

- impeller hub

1шт.

4

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

5

N7688

STATOR

HUB - impeller

1шт.

6

RESERVED

1шт.

7

RESERVED

1шт.

8

N7687

SPACER

- hub, reaction member

1шт.

9

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

10

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

8шт.

11

RESERVED

1шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

18

N7263

RING

RETAINING RING - bearing, small

1шт.

19

N7379

TURBINE

- shift

1шт.

20

N7378

BRACKET

HUB - turbine

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

E114288

RING

RETAINING RING - hub

1шт.

24

RESERVED

1шт.

25

E114290

RING

- locating, hub bearing

1шт.

26

E114291

BALL BEARING

BEARING - turbine hub

1шт.

27

E114292

WASHER

- bearing retaining

1шт.

28

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller to cover

1шт.

29

N7380

COVER

- impeller

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

31

92-6

LOCK WASHER,3/8"

24шт.

32

E114288

RING

- turbine retaining

1шт.

33

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

34

E114296

PLUG

- bore

1шт.

35

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

36

E114298

PLATE

FLEX PLATE - major

1шт.

37

E114299

PLATE

FLEX PLATE - minor

2шт.

38

E114300

PLATE

RING - flex plate

1шт.

39

92-6

LOCK WASHER,3/8"

10шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

41

A18033

SCREW

- hex head, 3/8" - 24 NF x 11/16", special

12шт.

42

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", special

12шт.
