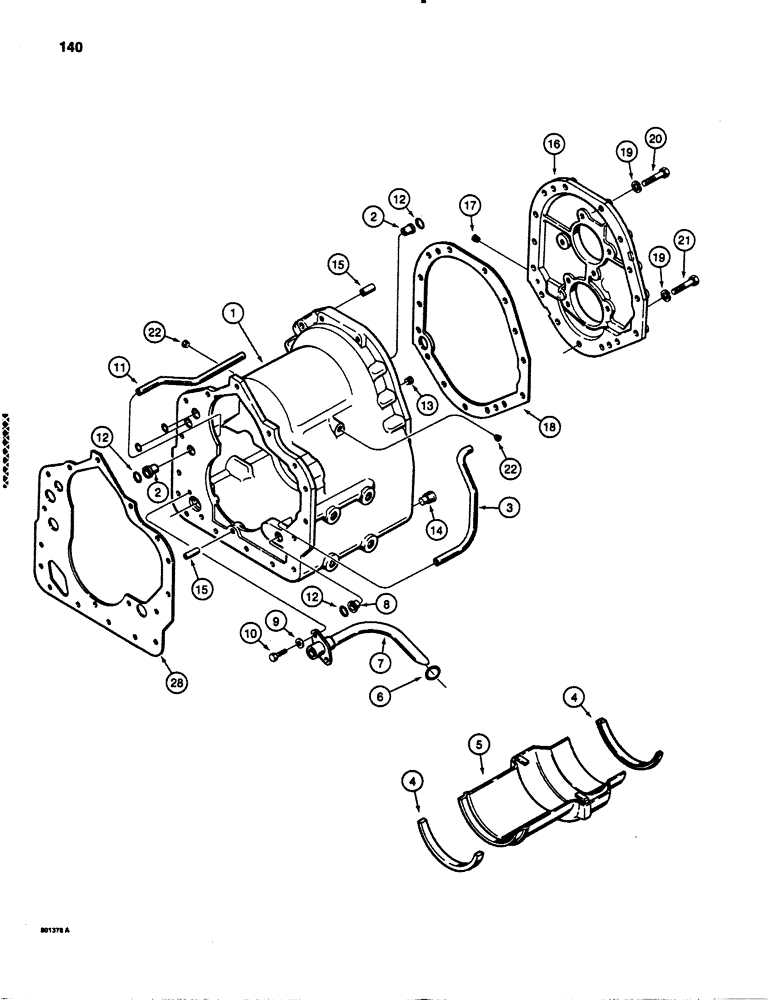

Запчасти Case 780B (140) - TRANSMISSION HOUSING, REAR COVER, AND TUBES (06) - POWER TRAIN

L104991

TRANSMISSION

ASSEMBLY - used before tractor SN 9145069, no longer available, for service order L109159 transmission, Includes: Ref. 1 - 28

1шт.

L109159

CASE

TRANSMISSION ASSEMBLY - forward and reverse, used on tractor SN 9145069 and after, Includes: Ref. 1 - 28

1шт.

1

N7139

HOUSING

- transmission case, Includes: Ref. 2 - 11

1шт.

2

A55734

SLEEVE

- tube

2шт.

3

N7142

TUBE,0.625" OD x 8.06" L

- clutch lube

1шт.

4

N7143

OIL SEAL

SEAL - oil baffle

2шт.

5

N7144

BAFFLE

OIL BAFFLE

1шт.

6

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- suction tube

1шт.

7

N7145

TUBE,1.13" DIA x 6.38" L

- suction

1шт.

8

D87207

SLEEVE

- tube

1шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

11

N7146

TUBE,12.81" L

- housing

1шт.

12

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- sleeve tube

3шт.

13

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, transmission case

1шт.

14

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - drain, magnetic

1шт.

15

A17924

PIN

DOWEL PIN -, Serial Range: case-cover

2шт.

16

N7136

COVER

- rear, transmission case, Includes: Ref. 17

1шт.

17

221-849

PLUG,Hex Soc, 1/8"-27

- rear cover

1шт.

18

N7137

GASKET

- rear cover

1шт.

19

92-7

LOCK WASHER,7/16"

15шт.

20

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

9шт.

21

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

6шт.

22

S117872

PLUG

- transmission case

2шт.

23

A64436

O-RING,0.549" ID x 0.755" OD

- clutch pressure, not shown

2шт.

24

RESERVED

1шт.

25

RESERVED

1шт.

26

RESERVED

1шт.

27

RESERVED

1шт.

28

N7138

WASHER

GASKET - transmission housing

1шт.
