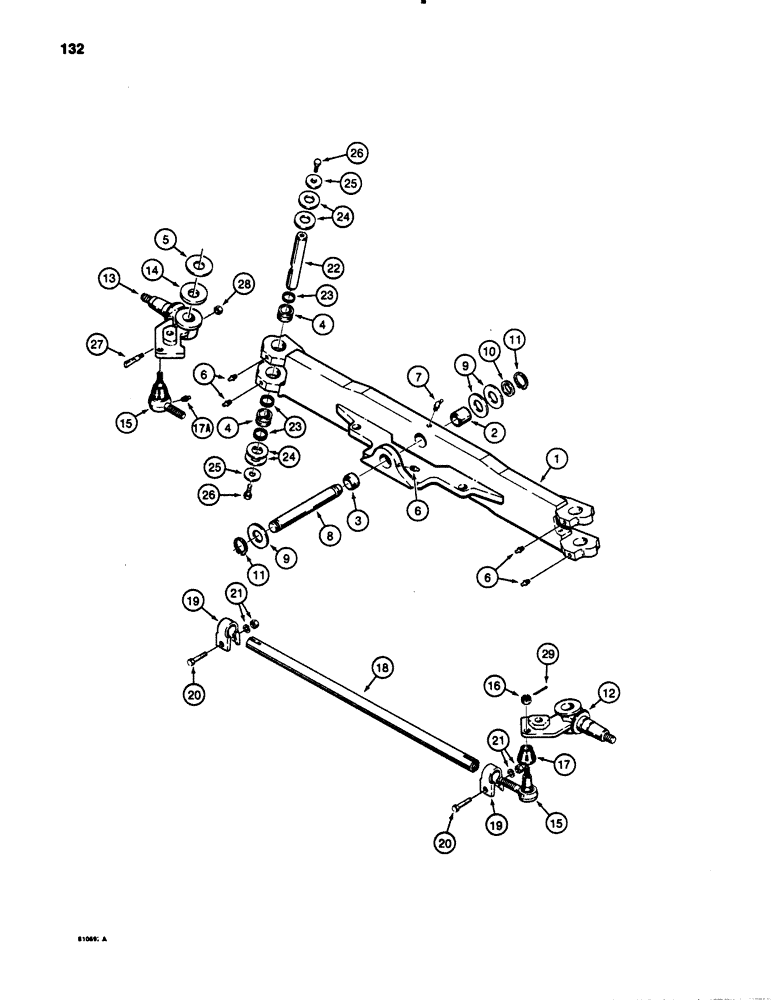

Запчасти Case 780B (132) - FRONT AXLE, SPINDLES, AND TIE ROD (05) - STEERING

1

L101469

AXLE

ASSEMBLY - front steering, used before tractor SN 9146272 and on tractor SN 9146276 and 9146277, Includes: Ref. 2 - 5

1шт.

1

L109624

AXLE

ASSEMBLY - front steering, used on tractor SN 9146272-9146275, 9146278, and after, Includes: Ref. 2 - 5

1шт.

2

L109416

BUSHING

- axle to chassis, front

1шт.

3

L109415

BUSHING

- axle to chassis, rear

1шт.

4

L101315

BUSHING

- steering arm pin, used with L101469 axle assembly

4шт.

4

L109617

BUSHING

- steering arm pin, used with L109624 axle assembly

4шт.

5

L101499

SHIM

- thrust washer, used with L101469 axle assembly

1шт.

5

L109621

SHIM,.25" Thk

and 3/4-16UNF 2A (Tie rod end) 4/15/98 -sb .25" Thk

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

5шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

8

L101397

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

9

D37449

SHIM,.0747" Thk

- axle to chassis

1шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

1шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

12

L105414

ARM/LIFTING DEVICE

STEERING ARM - spindle, right-hand, used before tractor SN 9146272 and on tractor SN 9146276 and 9146277

1шт.

12

L109622

SPINDLE

STEERING ARM - spindle, right-hand, used on tractor SN 9146272- 9146275 and 9146278 and after

1шт.

13

L105415

ARM/LIFTING DEVICE

STEERING ARM - spindle, left-hand, used before tractor SN 9146272 and on tractor SN 9146276 and 9146277, Includes: Ref. 14

1шт.

13

L109623

SPINDLE

STEERING ARM - spidle, left-hand used on tractor SN 9146272- 9146275 and 9146278 and after, Includes: Ref. 14

1шт.

14

L101499

SHIM

- thrust washer, used with L105414 and L105415 steering arms

1шт.

14

L109621

SHIM,.25" Thk

Thrust washer, Used with L109622 and L109623 steering arms .25" Thk

1шт.

L101306

ROD

TIE ROD ASSEMBLY - front steering, Includes: Ref. 15 - 21

1шт.

N7373

END

BALL JOINT ASSEMBLY - tie rod to spindle, left-hand, Includes: Ref. 15 - 17

1шт.

N7376

END ASSY.

BALL JOINT ASSEMBLY - tie rod to spindle, right-hand, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BALL JOINT - tie rod

1шт.

16

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

17

A31186

BOOT

SEAL - dust cover

1шт.

17a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

18

N7374

TUBE

- tie rod

1шт.

N7375

CLAMP

ASSEMBLY, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

CLAMP - ball joint retaining

1шт.

20

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

21

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, includes lock washer

1шт.

22

L101410

PIN

- steering arm, used before tractor SN 9146272, and used on tractor SN 9146276 and 9146277

2шт.

22

L109616

PIN

- steering arm, used on tractor SN 9146272-9146275 and 9146278 and after

2шт.

23

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

- steering arm pin

6шт.

24

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

- spacer

1шт.

25

195-2270

WASHER,13/16" x 3" x .238", HDN

- steering arm pin

4шт.

26

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

27

L101420

PIN

- lock, steering arm

2шт.

28

131-1330

JAM NUT,Jam, 5/8"-18

NUT - self-locking, 5/8" - 18 NF

2шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
