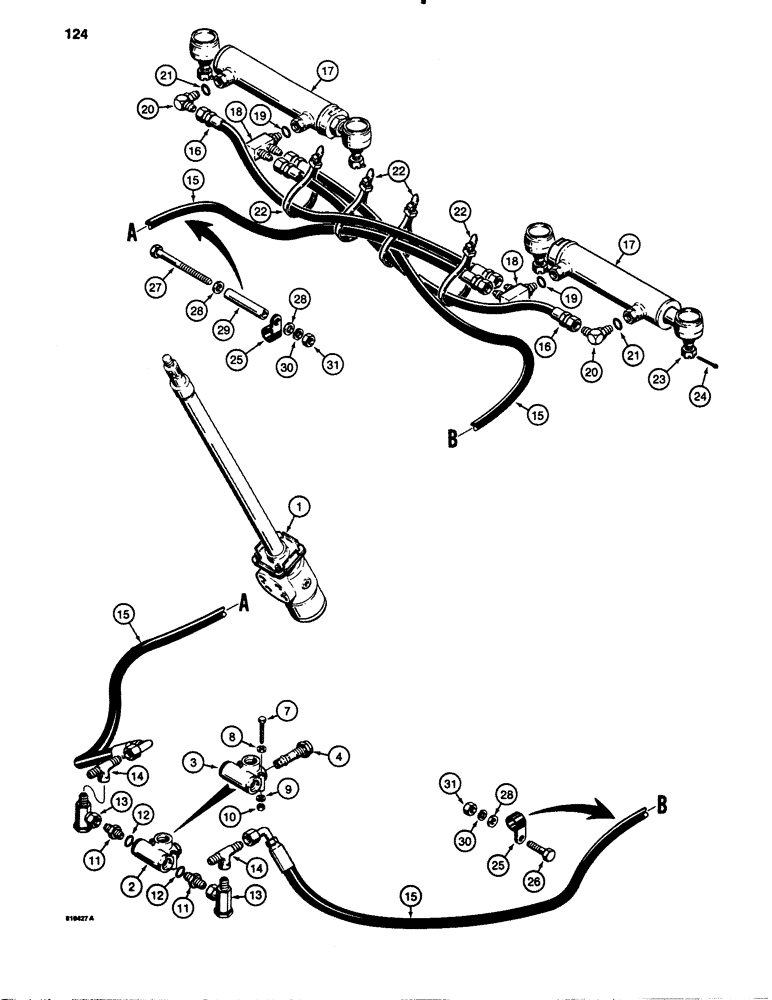

Запчасти Case 780B (124) - STEERING HYDRAULIC CIRCUIT - VALVE TO CYLINDERS (05) - STEERING

1

L102601

LOCK VALVE

CONTROL VALVE - steering, parts list Figure 128

1шт.

2

L59037

LOCK VALVE

CIRCUIT RELIEF VALVE - steering, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

4

L36080

CARTRIDGE

ASSEMBLY - relief, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, non-adjustable, not shown

1шт.

6

R31000

SEAL KIT

KIT - repair, seal, not shown, includes (4) O-rings and (2) backup washers

1шт.

7

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

8

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

CONNECTOR - check valve to relief valve, Includes: Ref. 12

2шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

13

L59038

LOCK VALVE

CHECK VALVE - steering control valve

2шт.

14

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

- at check valve

2шт.

15

L108303

HOSE

- valve to cylinders, 85" (2159 mm) long

2шт.

16

L103800

HOSE,0.38" ID x 40.00", SAE 100R1 Type A

Right Hand to Left Hand, Cylinders 0.38" ID x 40.00", SAE 100R1 Type A

2шт.

17

G102602

CYLINDER

- steering parts list Figure 130

2шт.

18

L57911

FITTING

- special, closed end of cylinder, Includes: Ref. 19

2шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, rod end of cylinder, Includes: Ref. 21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

23

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF

4шт.

24

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

4шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

3шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

27

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

5шт.

29

T32627

SPACER,5/8" Tube x 2"

- hose clamp

2шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.
