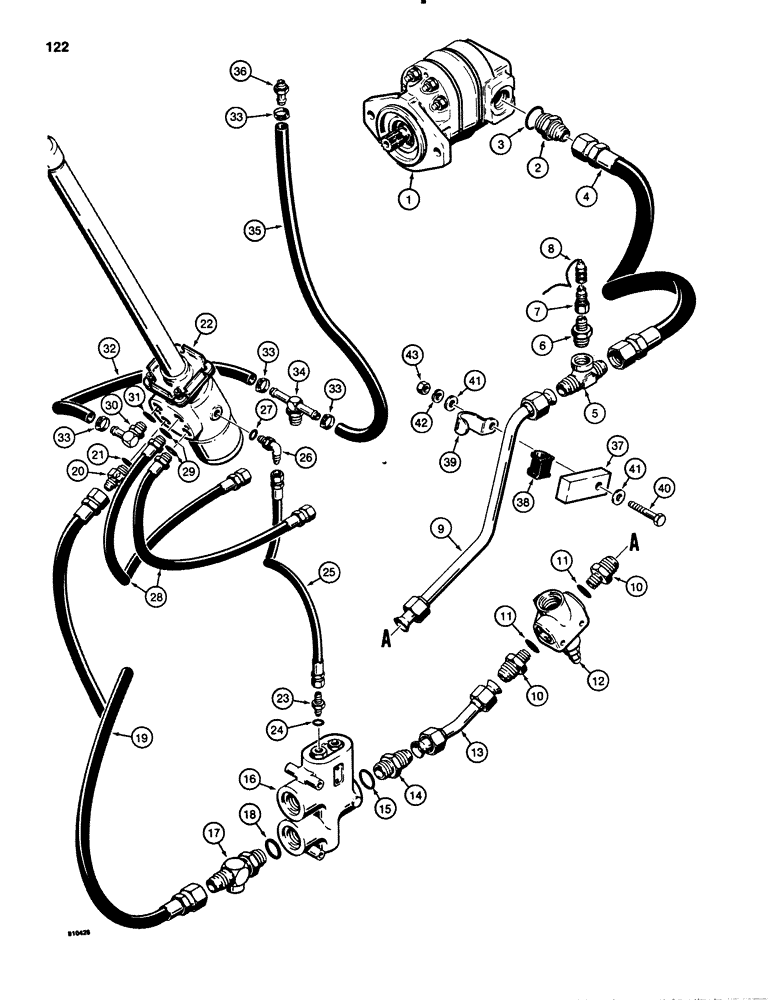

Запчасти Case 780B (122) - STEERING VALVE HYDRAULIC CIRCUIT, PUMP TO STEERING CONTROL VALVE (05) - STEERING

1

D127914

PUMP

HYDRAULIC PUMP - equipment, parts list Figure 274

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

L54137

HOSE ASSY.

HOSE - pump to relief valve, 25" (635 mm) long

1шт.

5

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check

1шт.

6

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - tee

1шт.

7

S206607

DISC

PLUG - pressure check

1шт.

8

S206608

CAP

- dust

1шт.

9

L105285

TUBE ASSY.,0.75" OD x 5.39, 10.42" L

TUBE - supply to relief

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight, male, Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

12

L106548

VALVE

RELIEF VALVE - parts list Figure 272

1шт.

13

L103972

TUBE,0.75" OD x 6.4, 1.85" L

- relief to flow control

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

16

L102602

LOCK VALVE

FLOW CONTROL VALVE - parts list Figure 270

1шт.

17

L106770

TEE

- special, check valve to flow control valve, Includes: Ref. 18

1шт.

Ref. 24 on Figure 238 fits into this tee port.

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

19

H262048

HOSE ASSY.

HOSE - steering supply

1шт.

20

L104449

LOCK VALVE

CHECK VALVE - steering, Includes: Ref. 21

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- check valve

1шт.

22

L102601

LOCK VALVE

CONTROL VALVE - steering, parts list Figure 128

1шт.

23

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, Incl. Ref. 24

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- connector

1шт.

25

D52712

HOSE ASSY.

HOSE - flow control to steering control valve, 27" (686 mm) long

1шт.

26

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 27

1шт.

27

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- fitting

1шт.

28

L103395

HOSE,0.38" ID x 18.00", SAE 100R1

- steering supply, 18" (457 mm) long, Includes: Ref. 29

2шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.

30

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree, Includes: Ref. 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

32

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

Relief Return 0.50" ID x 16.00", SAE 100R3

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

34

L100139

TEE

- relief

1шт.

35

L55952

HOSE,0.50" ID x 16.00", SAE 100R3

Relief 0.50" ID x 16.00", SAE 100R3

1шт.

36

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem 1/2" Hose X 3/8" NPTF Beaded

1шт.

37

L107114

SPACER

- clamp

1шт.

38

D74182

GROMMET,3/4" ID x 1.46" L

BLOCK - spacer

1шт.

39

D74192

CLAMP

- 3/4" tube

1шт.

40

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

41

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
