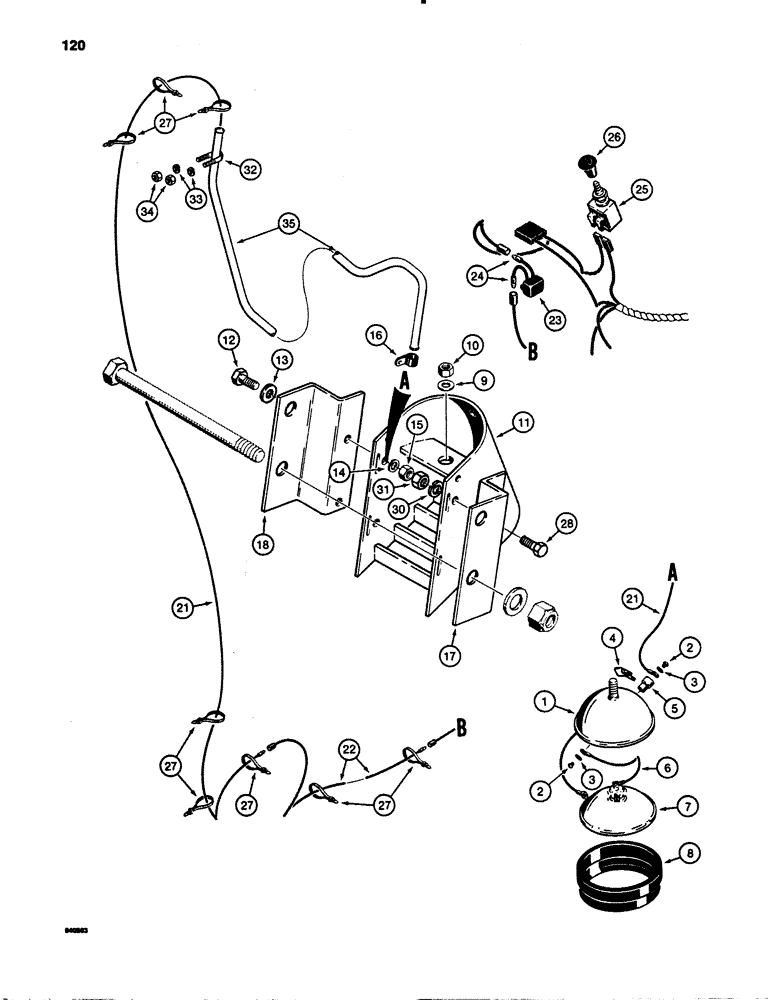

Запчасти Case 780B (120) - DIPPER LAMP, USED WITH EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

MACHINE SCREW - round head, No. 8 - 32 NC x 1/4"

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - external tooth lock, No. 8

2шт.

4

10927

SPRING

- lamp

1шт.

5

B50293

TERMINAL CONNECTOR

- lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

L10499

LAMP

- sealed beam, 24 volt No. 4589

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

- dipper lamp

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

16

49838

CLAMP

- wire

1шт.

17

L109156

BRACKET

- shield, dipper lamp, right-hand, not shown

1шт.

18

L109157

BRACKET

- shield, dipper lamp, left-hand

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

L100002

ELECTRICAL WIRE

WIRE - lamp to switch wire, 254" (6452 mm) long

1шт.

22

L104338

ELECTRICAL WIRE

WIRE - dipper lamp, 70" (1778 mm) long

1шт.

23

H335976

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

24

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet

2шт.

25

D74330

SWITCH

- dipper lamp

1шт.

26

D70448

KNOB

- dipper lamp

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

29

RESERVED

1шт.

30

92-8

LOCK WASHER,1/2"

3шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

32

L78949

U-BOLT

- 5/16" - 18 NC

1шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

35

L109071

TUBE,0.5" OD

- light wire guard

1шт.
