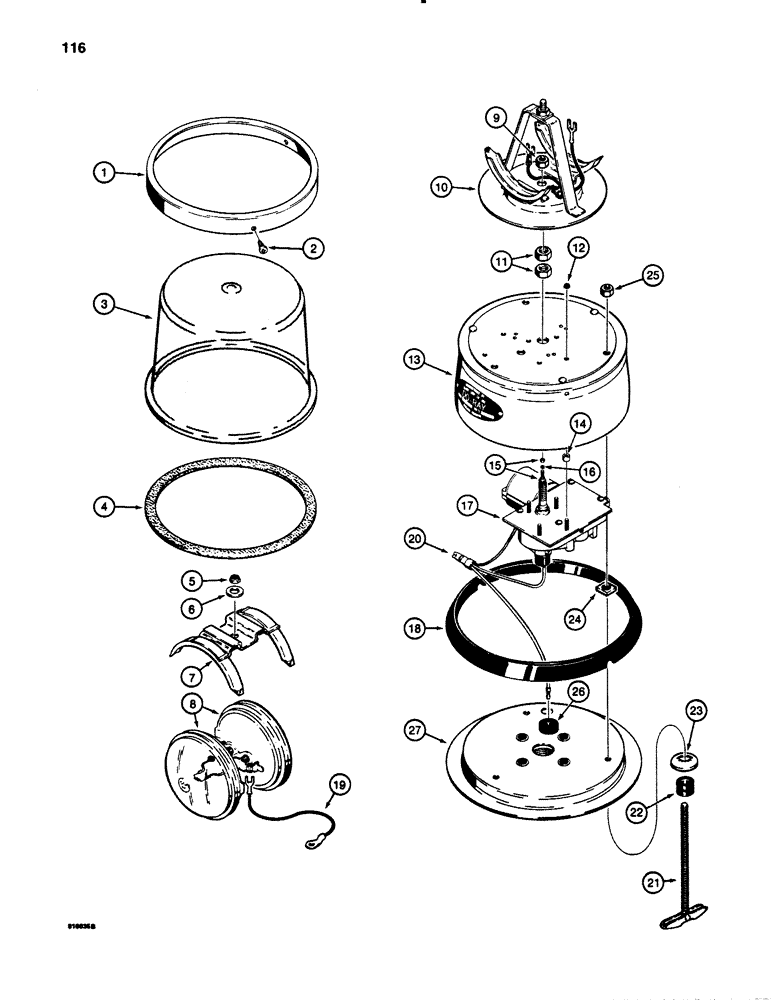

Запчасти Case 780B (116) - ROTATING BEACON - DO-RAY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
L16676
BEACON
ROTATING BEACON ASSEMBLY - 360 degree, 24 volt, red lens, Includes: Ref. 1 - 26
1шт.
The parts listed on this figure are only for the Do-Ray manufactured beacon assembly. Please see Figure 117A for the Signal Stat manufactured beacon assembly parts list.
1шт.
L16100
BEACON
ROTATING BEACON ASSEMBLY - 360 degree, 24 volt, amber lens, Includes: Ref. 1 - 26
1шт.
The parts listed on this figure are only for the Do-Ray manufactured beacon assembly. Please see Figure 117A for the Signal Stat manufactured beacon assembly parts list.
1шт.
1
L32219
RING - clamp, Serial Range: lens-body
1шт.
3
L32230
LENS
- beacon, red
1шт.
3
L32221
LENS
- beacon, amber
1шт.
4
L32220
GASKET -, Serial Range: lens-body
1шт.
5
131-204
NUT,1/4"-20
NUT - hex, self-locking, 1/4" - 20 NC
1шт.
6
95-4
WASHER,1/4"
- flat, 1/4"
1шт.
7
L32222
BRACKET - retainer, sealed beam
1шт.
8
L32223
LAMP
- sealed beam, 24 volt
2шт.
9
129-303
NUT,3/8"-16, G5, LH
- hex, 3/8" - 24 NF, left-hand thread
1шт.
10
L32224
PLATE - mounting, lamp
1шт.
11
L32225
NUT
- special, brass
2шт.
12
131-29
LOCK NUT,#8-32, GB
NUT - hex, self-locking, No. 8 - 32 NC
4шт.
13
L32226
BASE
- motor and lens
1шт.
14
NSS
NOT SOLD SEPARAT
SPACER -, Serial Range: motor-base
4шт.
15
129-3
NUT,#4-40
2шт.
16
192-3
LOCK WASHER
- lock, No. 4
1шт.
17
L32229
MOTOR - electric, 24 volt
1шт.
18
L32227
GASKET
- base
1шт.
19
L35144
WIRE - ground, bulbs
1шт.
20
T29401
NUT
- wire, twist on, small white
1шт.
L35092
KIT
- mounting, includes a switch and a wire not used on this tractor, Includes: Ref. 21 - 26
1шт.
21
L35148
BOLT
- toggle, No. 10 - 24 NC
3шт.
22
F13115
GROMMET
- rubber, mounting
3шт.
23
L35146
LOCK WASHER
WASHER - lock, No. 10
3шт.
24
129-47
NUT
- square, No. 10 - 24 NC
3шт.
25
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
3шт.
26
A43211
GROMMET
- rubber, wire
1шт.
27
L16101
MOUNT - beacon
1шт.
Выбрано товаров: 33
