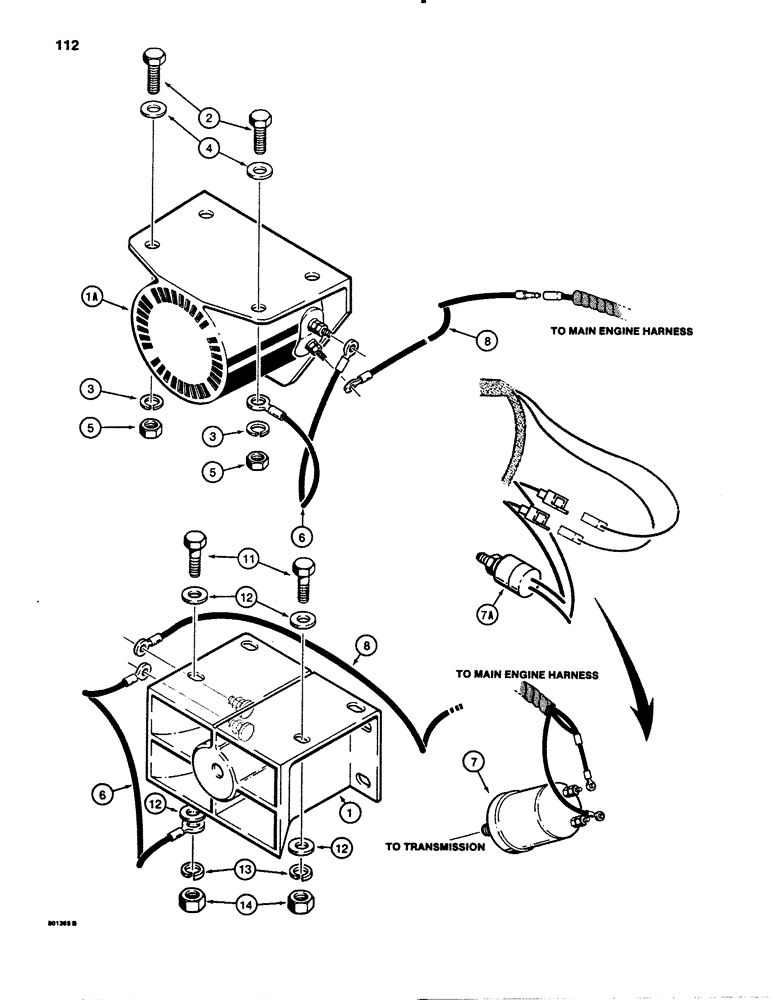

Запчасти Case 780B (112) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D75814

BUZZER

BACKUP ALARM - electric

1шт.

1a

L109087

HOUSING

BACKUP ALARM - electric, for service order D75814

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with D75814 alarm Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

used with D75814 alarm 3/8"

4шт.

4

95-6

WASHER,3/8"

- flat, , used with D75814 alarm 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with D75814 alarm

4шт.

6

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.

7

L77235

SWITCH

- pressure, alarm, eyelet type terminals, order L112588 switch and L36238 repair kit for service

1шт.

The L36238 electrical repair kit, not shown, contains instructions, (4) 223- 59 eyelet, (2) 223-250 splice, (1) 223-61 eyelet, and (2) 353-406 5/8" plug.

1шт.

7a

L112588

SWITCH

- pressure, alarm, blade type terminals

1шт.

8

L104269

ELECTRICAL WIRE

WIRE - harness to backup alarm

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - wire harness, 15 inch, not shown

1шт.

10

L107783

WIRE - harness to switch, not shown

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", used with L109087 alarm

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with L109087 alarm

4шт.

13

92-5

LOCK WASHER,5/16"

used with L109087 alarm 5/16"

2-4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used with L109087 alarm

2-4шт.
