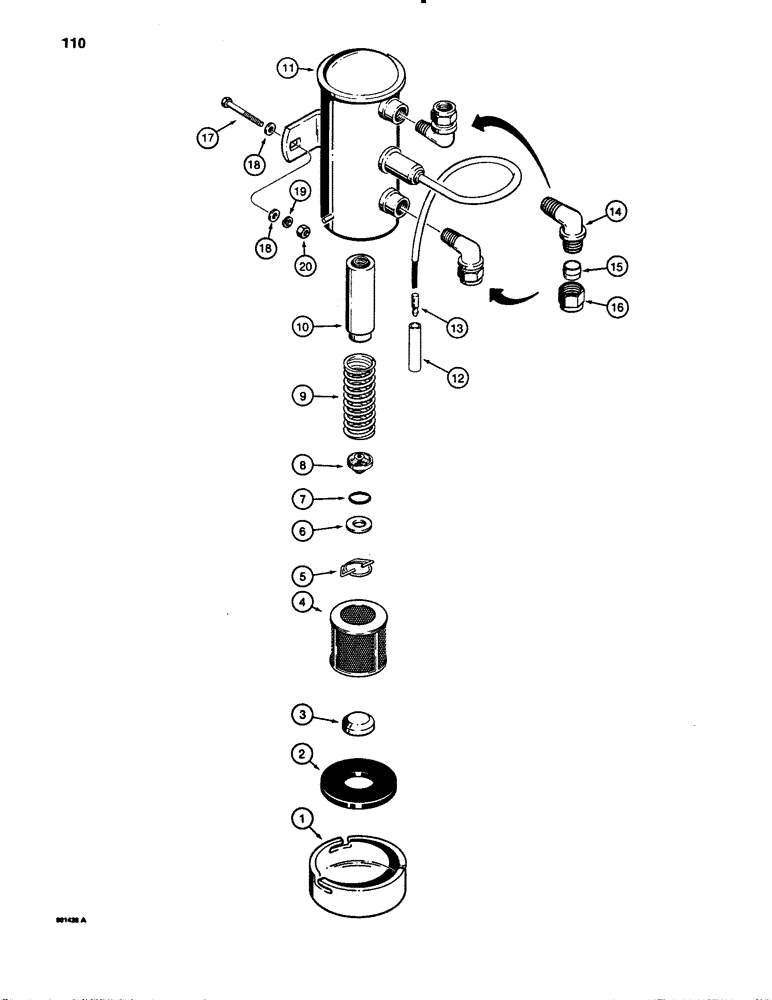

Запчасти Case 780B (110) - ELECTRIC FUEL PUMP (04) - ELECTRICAL SYSTEMS

L52634

PUMP

FUEL PUMP - electric, Includes: Ref. 1 - 13

1шт.

1

A40312

COVER

- fuel pump

1шт.

2

A40315

GASKET

- cover

1шт.

3

A40311

MAGNET

- plunger

1шт.

4

N6000

FILTER SCREEN

SCREEN - filtering

1шт.

5

A40316

RETAINER

- seal

1шт.

6

A40317

WASHER

- special, retainer

1шт.

7

A40318

O-RING,0.429" ID x 0.106"

- valve

1шт.

8

A40313

CUP

VALVE - cup

1шт.

9

L35316

SPRING

- plunger

1шт.

10

A40310

PLUNGER

- fuel pump

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

12

L78495

SLEEVE,0.19" ID x 1.5" L

- insulation

1шт.

13

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , bullet Male

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

FITTING ASSEMBLY - hose, 90 degree, Includes: Ref. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

15

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

16

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

17

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

18

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.
