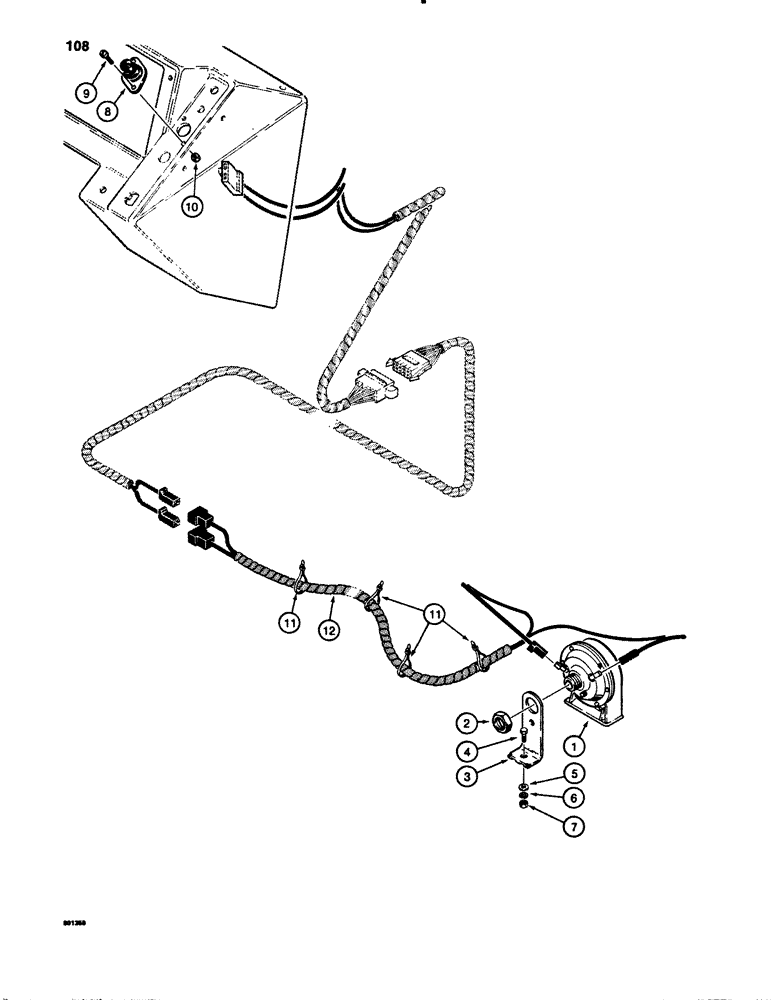

Запчасти Case 780B (108) - HORN (04) - ELECTRICAL SYSTEMS

1

D77650

HORN

- 24 volt

1шт.

2

L30866

LOCK NUT

- horn mounting

1шт.

3

L73799

BRACKET

- horn mounting

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

8

D67872

SWITCH

- push button, horn

1шт.

9

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- No. 10 - 32 NC x 1/2"

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- No. 10 - 32 NC

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

12

L104266

HARNESS

- horn

1шт.
