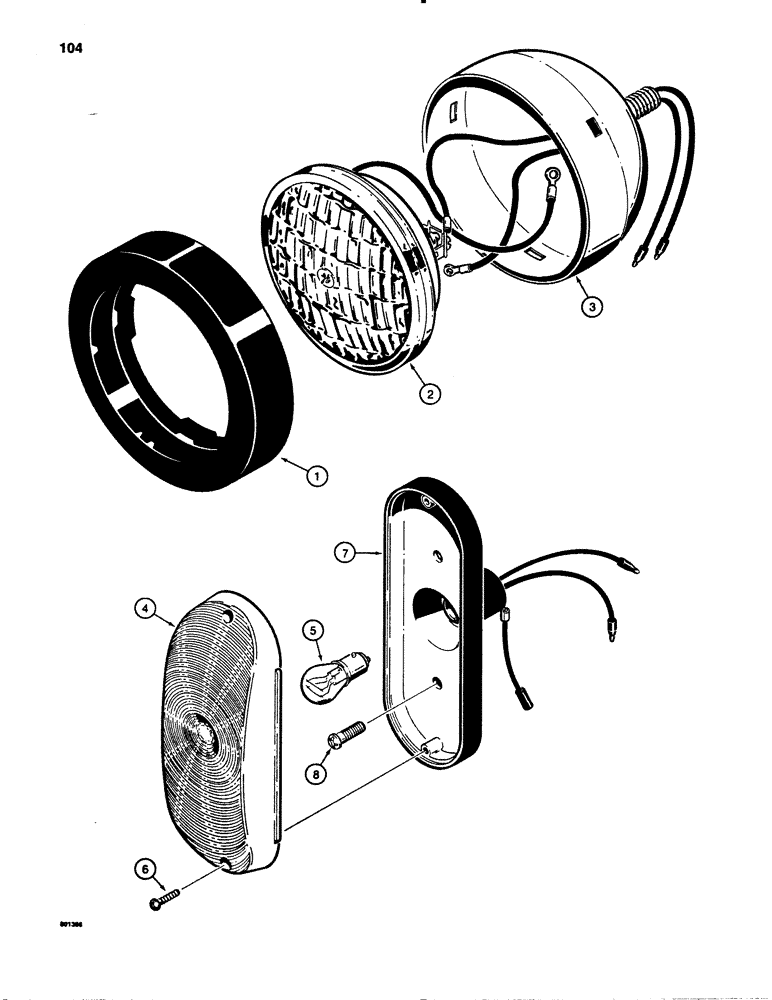

Запчасти Case 780B (104) - TRACTOR LAMPS, STOP AND TAIL LAMPS, L104605 STOP AND TAIL (04) - ELECTRICAL SYSTEMS

L104605

LAMP

ASSEMBLY - stop and tail, used on canopy models, if used, Includes: Ref. 1 - 3

1шт.

1

A25213

RETAINER

lamp

1шт.

2

N7125

LAMP

BULB - lamp, No. 4237

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

L103756

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, used on cab or canopy models, L103756, Includes: Ref. 4 - 8

2шт.

4

N6836

LENS

L103756 stop and tail lamp

1шт.

5

L33194

BULB

No. 1662, L103756 stop and tail lamp

1шт.

6

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 - 32 NC x 5/8", L103756 stop and tail lamp

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - L103756 stop and tail lamp, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - No. 10 - 32 NC x 3/4", not used on this model, see Figure 101 for the correct hardware, L103756 stop and tail lamp

2шт.
