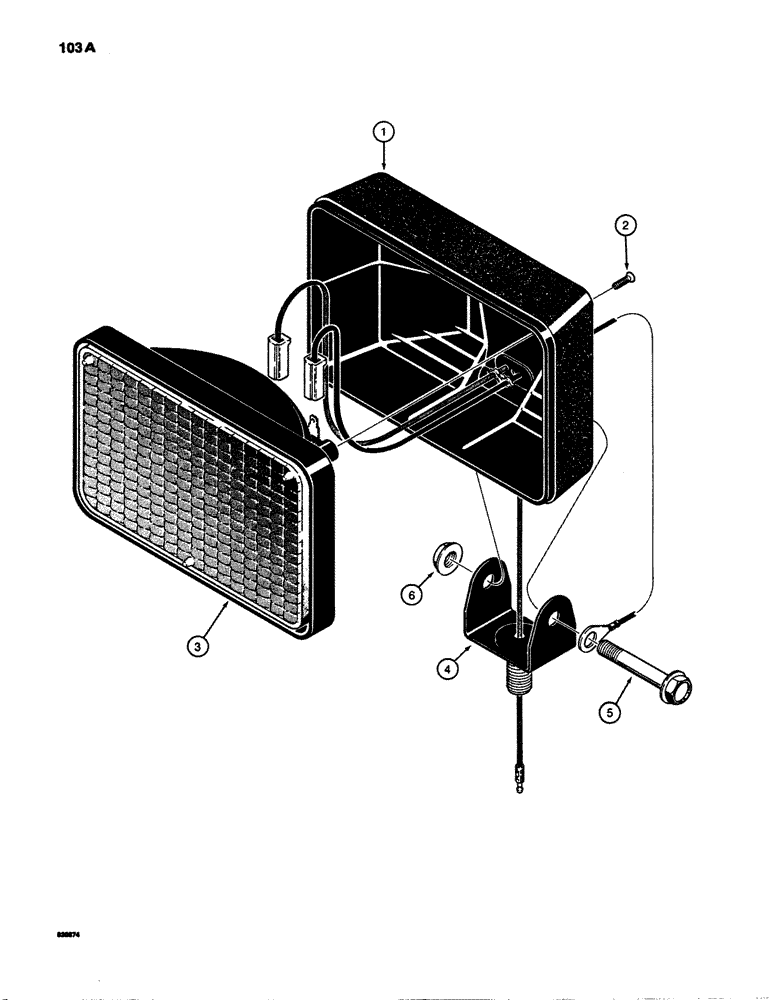

Запчасти Case 780B (103A) - TRACTOR LAMPS (HALOGEN), FRONT DRIVING AND REAR FLOOD LAMPS USED ON MODELS W/ CAB (04) - ELECTRICAL SYSTEMS

F96875

LAMP BASE

LAMP ASSEMBLY - front driving, without bracket (Ref. 4), Includes: Ref. 1 - 6

2шт.

For service, order P/N F96876.

1шт.

F96876

LAMP

ASSEMBLY - rear flood, with bracket (Ref. 4)

1-2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2"

2шт.

3

F45305

HEADLIGHT

BULB - sealed beam, (Replaces F45230)

1шт.

4

N8347

SUPPORT

BRACKET - lamp, used with rear flood lamp

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16"-18 NC, plated

1шт.
