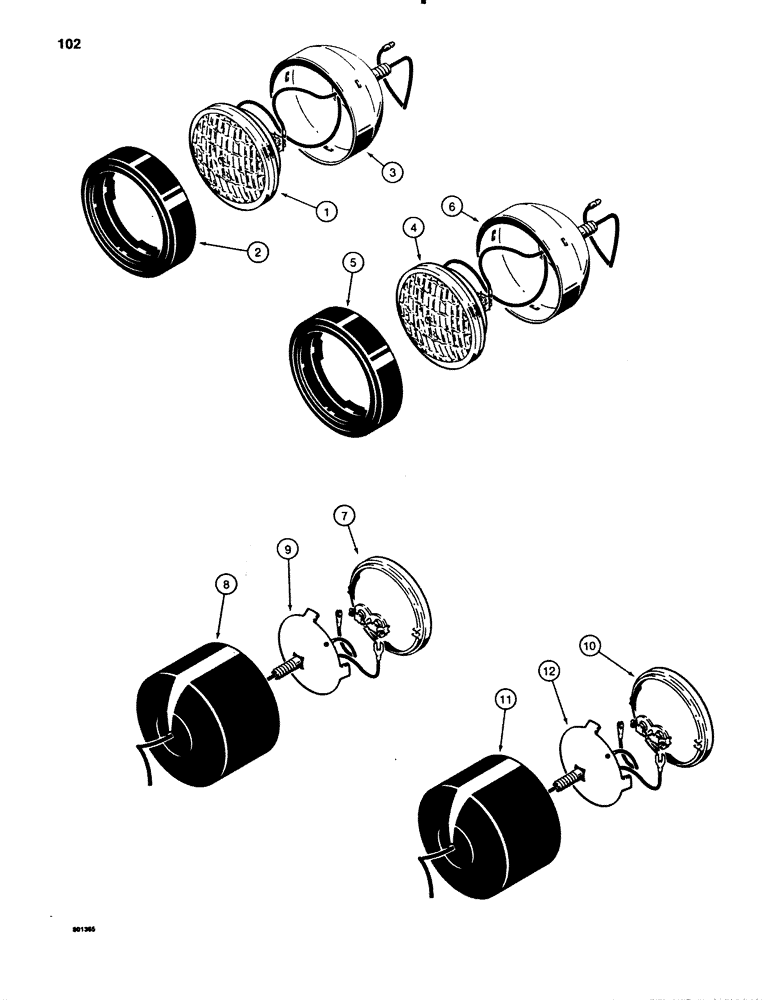

Запчасти Case 780B (102) - TRACTOR LAMPS (INCANDESCENT), FRONT DRIVING AND REAR FLOOD, L103264 REAR DRIVING LAMP (04) - ELECTRICAL SYSTEMS

L103264

LAMP

ASSEMBLY - front driving, used on canopy models, Includes: Ref. 1 - 3

2шт.

1

L10499

LAMP

BULB - sealed beam, No. 4589

1шт.

2

A25213

RETAINER

- rubber

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

L103263

LAMP

ASSEMBLY - rear flood, used on canopy models, L103263, Includes: Ref. 4 - 6

1-2шт.

4

A25212

LAMP

BULB - sealed beam, No. 4593, L103263 rear flood

1шт.

5

A25213

RETAINER

rubber, L103263 rear flood lamp

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - L103263 rear flood lamp

1шт.

F93557

INTERIOR LIGHT

LAMP ASSEMBLY - front driving, used on cab models, F93557, Includes: Ref. 7 - 9

2шт.

7

L10499

LAMP

BULB - sealed beam, No. 4589, F93557 front driving lamp

1шт.

8

F44804

BODY

F93557 front driving lamp

1шт.

9

F44805

SUPPORT ASSY.

WASHER - support, F93557 front driving lamp

1шт.

F93558

INTERIOR LIGHT

LAMP ASSEMBLY - rear flood, used on cab models, F93558, Includes: Ref. 10 - 12

2шт.

10

A25212

LAMP

BULB - sealed beam, No. 4593, F93558 rear flood

1шт.

11

F44804

BODY

F93558 rear flood lamp

1шт.

12

F44805

SUPPORT ASSY.

WASHER - F93558 rear flood lamp

1шт.
