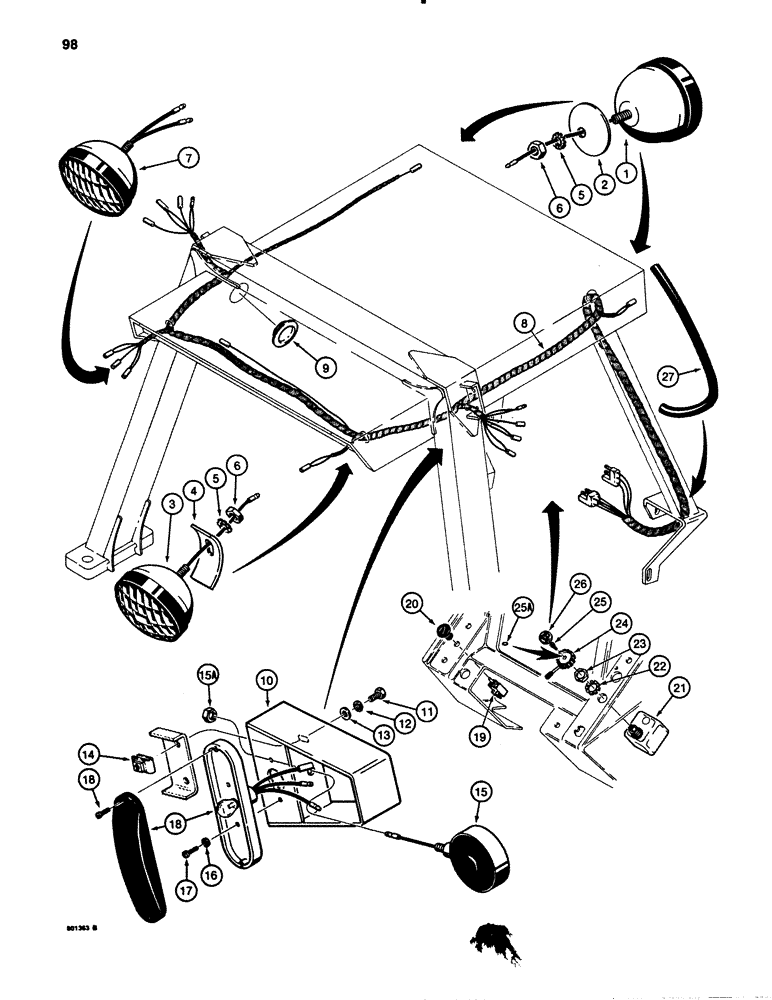

Запчасти Case 780B (098) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

L103264

LAMP

ASSEMBLY - front driving, parts list Figure 102

2шт.

2

A59702

RETAINER

WASHER - retainer, front driving lamp

2шт.

3

L103263

LAMP

ASSEMBLY - rear flood, parts list Figure 102

1-2шт.

4

D90092

RETAINER

- rear flood lamp

1-2шт.

5

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

3-4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3-4шт.

7

L104605

LAMP

ASSEMBLY - stop and tail, used on models without flasher lights only, see Refs. 15 and 18 on this Figure, for parts list see Figure 104

1шт.

8

L103688

HARNESS

- ROPS canopy

1шт.

9

205-72

HOLE PLUG BUTTON,3"

PLUG - access

2шт.

10

D88533

BRACKET

- side lamps, if used

2шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

14

131-641

NUT

- U-type, 5/16" - 18 NC

4шт.

15

L108118

LAMP

ASSEMBLY - flasher, if used, parts list Figure 106

2шт.

15a

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 18 NF

2шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10 - 24 NC x 1/2"

4шт.

18

L103756

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, if used, see Ref. 7 above, parts list Figure 104

2шт.

19

D74330

SWITCH

- flasher, see Figure 92 for front and rear light switches

1шт.

20

D88134

KNOB

- flasher switch

1шт.

21

L101702

INDICATOR LIGHT

SWITCH - turn signal

1шт.

Also is a flasher switch.

1шт.

22

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

23

D91352

JAM NUT

- special

1шт.

24

A141736

KNOB

- turn signal switch

1шт.

25

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- No. 5 - 40 NC x 1/2"

1шт.

25a

193-3

LOCK WASHER,Int Tooth, #5

WASHER - external tooth lock, No. 5

1шт.

26

A160035

PLATE

- knob, turn signal switch

1шт.

27

L105943

HOSE ASSY.

HOSE - harness cover

1шт.
