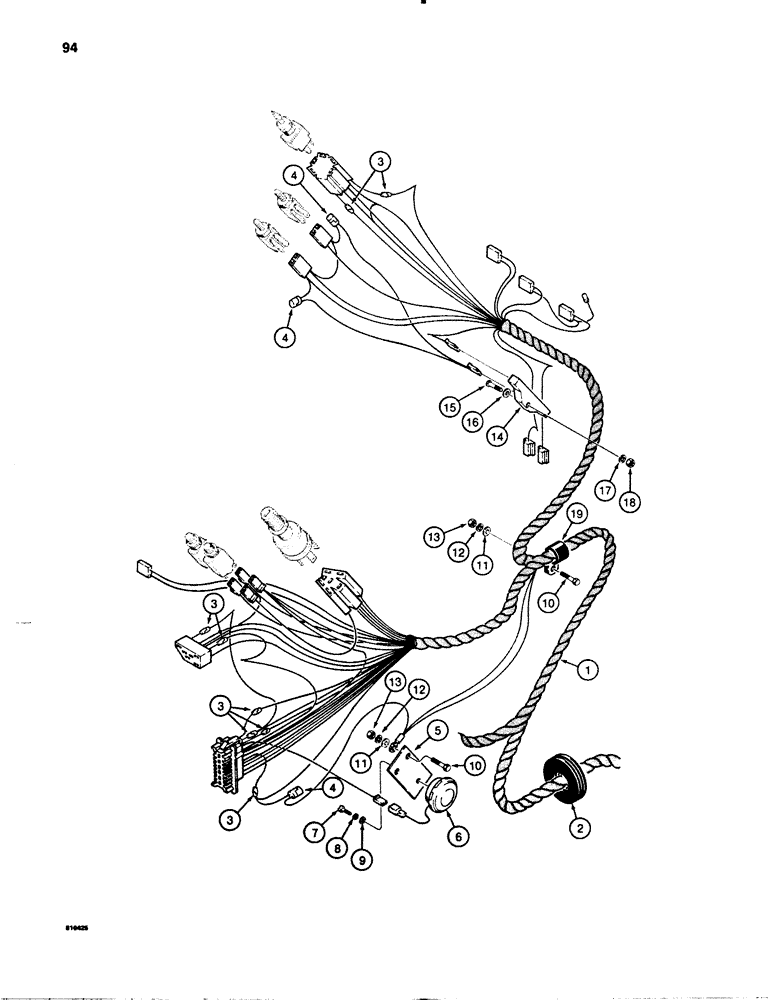

Запчасти Case 780B (094) - ELECTRICAL SYSTEM, INSTRUMENT HARNESS (04) - ELECTRICAL SYSTEMS

1

L103427

HARNESS

- instrument, used before tractor SN 9145071

1шт.

1

L107330

HARNESS

- instrument, used on tractor SN 9145071-9151364

1шт.

1

L60760

HARNESS

- instrument, used on tractor SN 9151365 and after, not shown

1шт.

1a

L106747

HOLDER - resistor, not shown, used with L107330 instrument harness

1шт.

2

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- harness

1шт.

3

L73576

RESISTOR

- 40 ohm

8шт.

4

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

3шт.

5

L105849

BRACKET

- insulating

1шт.

6

L107892

HORN

BUZZER - warning

1шт.

7

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- No. 8 - 32 NC x 1/2"

1шт.

8

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

9

195-10

WASHER,#8

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex head, 1/4" - 20 NC x 3/4"

3шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

3шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

25-104

NUT,1/4"-20, G5

3шт.

14

L76800

RESISTOR

- 15 ohm

1шт.

15

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

- No. 10 - 24 NC x 1-1/4"

1шт.

16

195-513

WASHER,#10

- flat, No. 10

1шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

1шт.

19

R14668

CLAMP

- harness

1шт.
