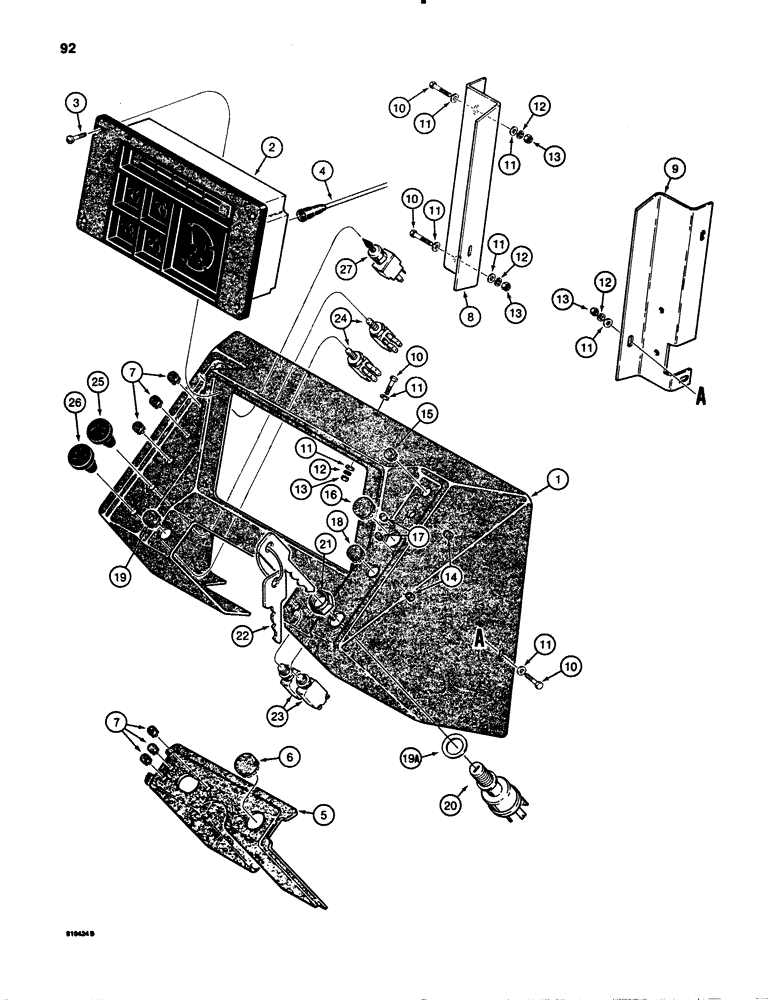

Запчасти Case 780B (092) - ELECTRICAL SYSTEM, INSTRUMENT PANEL AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

D83240

PANEL

INSTRUMENT - tractor

1шт.

2

REF

INSTRUCTION

INSTRUMENT CLUSTER - panel, parts list Figure 96

1шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

4шт.

4

D68851

CABLE

Tachometer flex drive

1шт.

5

D83255

PANEL

BRACKET - instrument

1шт.

6

353-412

PLUG,Dome, 1.093" hole, Nylon

Button

1шт.

7

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

8

L108800

BRACKET

Instrument panel mounting, LH

1шт.

9

L101678

BRACKET

SPARE PART Instrument panel mounting, RH

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

9шт.

11

95-4

WASHER,1/4"

15шт.

12

92-4

LOCK WASHER,1/4"

9шт.

13

25-104

NUT,1/4"-20, G5

9шт.

14

353-401

PLUG,Dome, .312" hole, Nylon

Button

4шт.

15

353-403

PLUG,Dome, .437" hole, Nylon

Button, 3/4"

1шт.

16

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

17

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

18

353-408

PLUG,Dome, .750" hole, Nylon

Button

1шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

Button

1шт.

19a

L31557

WASHER

Special

1шт.

L61053

IGNITION SWITCH

KEY ASSEMBLY - includes keys, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

KEY SWITCH - less keys

1шт.

21

A77314

NUT

Key switch mounting

1шт.

22

A77313

SET OF 2 KEYS

1шт.

23

L76929

BREAKER

12 amp circuit

2шт.

24

D74330

SWITCH

Lamp

2шт.

25

D70448

KNOB

Flood lamp

1шт.

26

D70446

KNOB

Lamp switch

1шт.

27

D75360

SWITCH

Warning lamp check

1шт.
