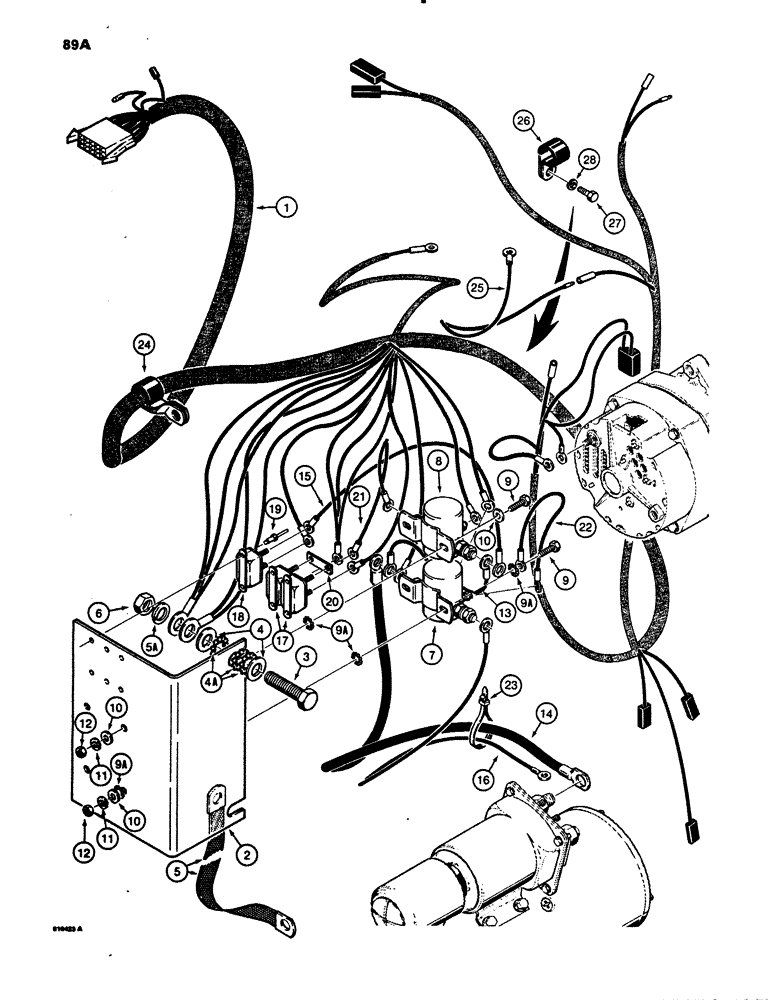

Запчасти Case 780B (089A) - ELECTRICAL SYSTEM, FRONT HARNESS AND CONNECTIONS, UNITS WITH CHASSIS MOUNTED SOLENOID BRACKET (04) - ELECTRICAL SYSTEMS

1

L107331

HARNESS

- front, used on tractor SN 9145071 and after

1шт.

2

L107262

BRACKET - solenoid, used on tractor 9145071 and after

1шт.

See Figure 88 for the number and parts list for the engine mounted solenoid bracket.

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

4

95-8

WASHER,1/2"

flat 1/2"

4шт.

4a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

6шт.

5

D127106

STRAP

CABLE - ground, flat, mounts to 3-1/4" bolt on starter and between flat washer and lock washer on the solenoid mounting bracket

1шт.

5a

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

7

L109871

SOLENOID

- starter

1шт.

8

S240588

SOLENOID SWITCH

SOLENOID - cab

1шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

9a

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

9шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

7шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

25-104

NUT,1/4"-20, G5

4шт.

13

L77004

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-solenoid

1шт.

14

L106103

CABLE

- starter to solenoid, used on SN 9145071 and after

1шт.

15

L77003

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

16

L107275

ELECTRICAL WIRE

WIRE - starter to solenoid, used on SN 9145071 and after

1шт.

17

L104328

BREAKER

- circuit 25 amp

2шт.

18

L104329

BREAKER

- circuit 15 amp

1шт.

19

151-539

RIVET,Pop, 3/16" x .450"

POP RIVET - circuit breaker, 3/16 x 7/16

6шт.

20

L74683

BAR

- buss, circuit breaker

1шт.

21

L70058

ELECTRICAL WIRE

WIRE - relay to circuit breaker

1шт.

22

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

24

L100108

CLAMP

- 1/2", use existing hardware

1шт.

25

L105873

WIRE - water temperature sender

1шт.

26

49838

CLAMP

- harness

1шт.

27

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.
