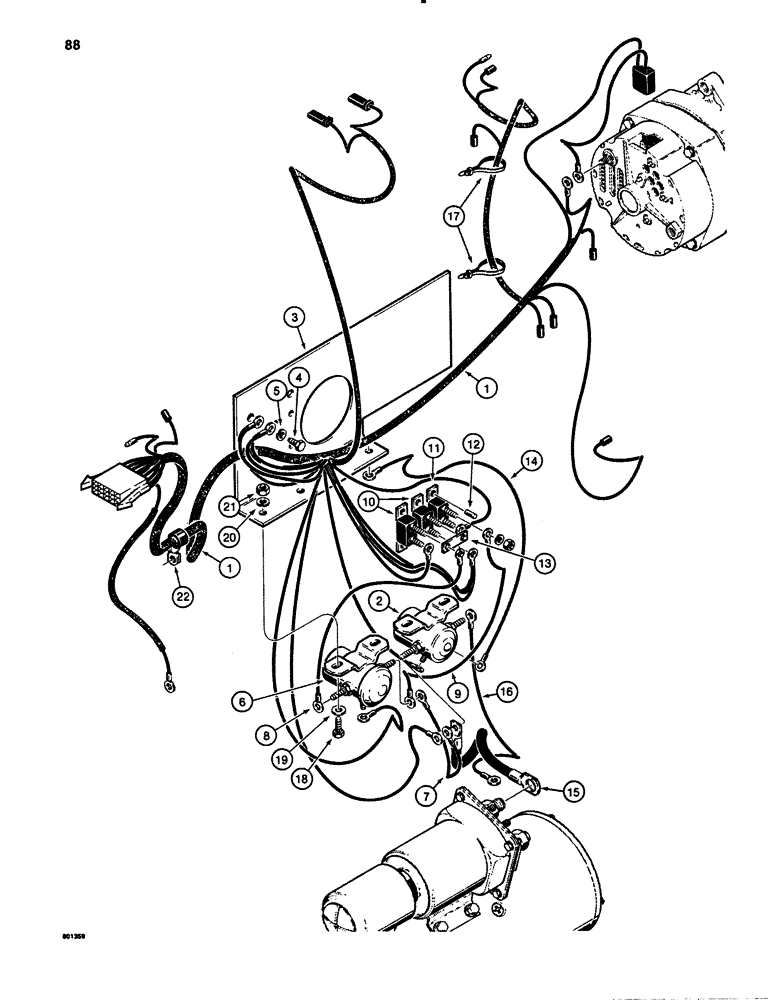

Запчасти Case 780B (088) - ELECTRICAL SYSTEM, FRONT HARNESS AND CONNECTIONS, UNITS WITH ENGINE MOUNTED SOLENOID BRACKET (04) - ELECTRICAL SYSTEMS

1

L103426

HARNESS

- front, used before tractor SN 9145071

1шт.

2

L109871

SOLENOID

- starter

1шт.

3

L101019

BRACKET

- solenoid, used before tractor SN 9145071

1шт.

See Figure 89A for the number and parts list for the chassis mounted solenoid bracket.

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

6

S240588

SOLENOID SWITCH

SOLENOID - cab

1шт.

7

L77004

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-solenoid

1шт.

8

L70058

ELECTRICAL WIRE

WIRE - relay to circuit breaker

1шт.

9

L77003

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

10

L104328

BREAKER

- circuit, 25 amp

2шт.

11

L104329

BREAKER

- circuit, 15 amp

1шт.

12

151-539

RIVET,Pop, 3/16" x .450"

POP RIVET - circuit breaker, 3/16 x 7/16

6шт.

13

L74683

BAR

- buss, circuit breaker

1шт.

14

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

15

L100671

CABLE

- starter to solenoid, used before tractor SN 9145071

1шт.

16

L100451

CABLE

WIRE - starter to solenoid, used before tractor SN 9145071

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

19

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

25-104

NUT,1/4"-20, G5

4шт.

22

L100108

CLAMP

- 1/2", use existing hardware

1шт.
