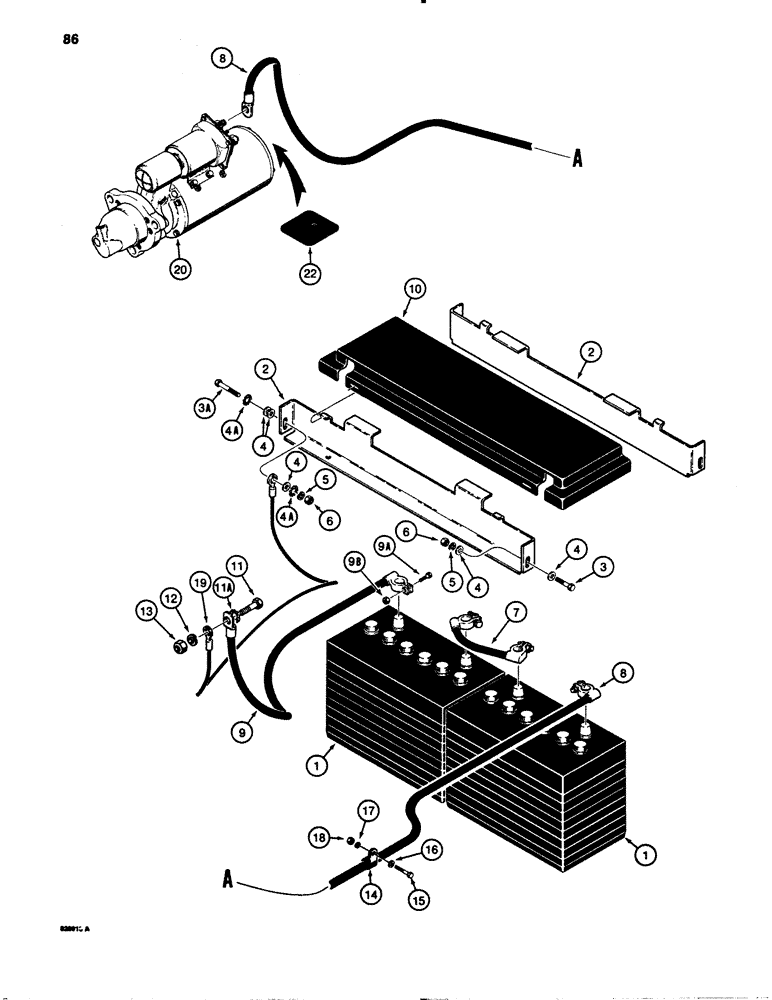

Запчасти Case 780B (086) - BATTERY CABLES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A145205
WET BATTERY
- 12 volt, used before tractor SN 9146272, not used on tractor SN 9146273, 9146274, 9146276-9146283, 9146285-9146288,9146290, 9146291, 9146294-9146296, 9146299, 9146300
2шт.
1
A38411
DRY BATTERY
- 12 volt, used on tractor SN 9146272, 9146275, 9146284, 9146289, 9146292, 9146293, 9146297, 9146298, and after
2шт.
2
L105234
BRACKET
- battery hold down, used with A145205 battery
2шт.
2
L108531
BRACKET
- battery hold down, used with A38411 battery
2шт.
3
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
3a
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
4
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
4a
193-72
LOCK WASHER
- internal-external tooth lock, 3/8", plated
2шт.
5
92-6
LOCK WASHER,3/8"
4шт.
6
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
7
L100781
CABLE
- jumper, Serial Range: battery-battery
1шт.
8
L103059
CABLE
-, Serial Range: battery-starter
1шт.
9
A165027
CABLE
-, Serial Range: battery-ground
1шт.
9a
117-108
SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5
- hex head, 5/16" - 18 NC x 1-3/8", used with A165027 cable only
1шт.
9b
129-516
NUT
- hex, 5/16" - 18 NC, used with A165027 cable only
1шт.
10
L105228
COVER
- battery, if used
1шт.
Newer units did not use this part.
1шт.
11
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
- hex head, 1/2" - 13 NC x 2-1/4"
1шт.
11a
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
1шт.
12
92-8
LOCK WASHER,1/2"
1шт.
13
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
1шт.
14
49774
CLAMP
- battery cable
1шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
16
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
17
92-6
LOCK WASHER,3/8"
1шт.
18
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
19
L108391
ELECTRICAL WIRE
WIRE - ground
1шт.
20
REF
INSTRUCTION
STARTER - engine, parts list Figures 68-74
1шт.
21
RESERVED
1шт.
22
L109571
SHIELD
- starter, if used
1шт.
Выбрано товаров: 30
