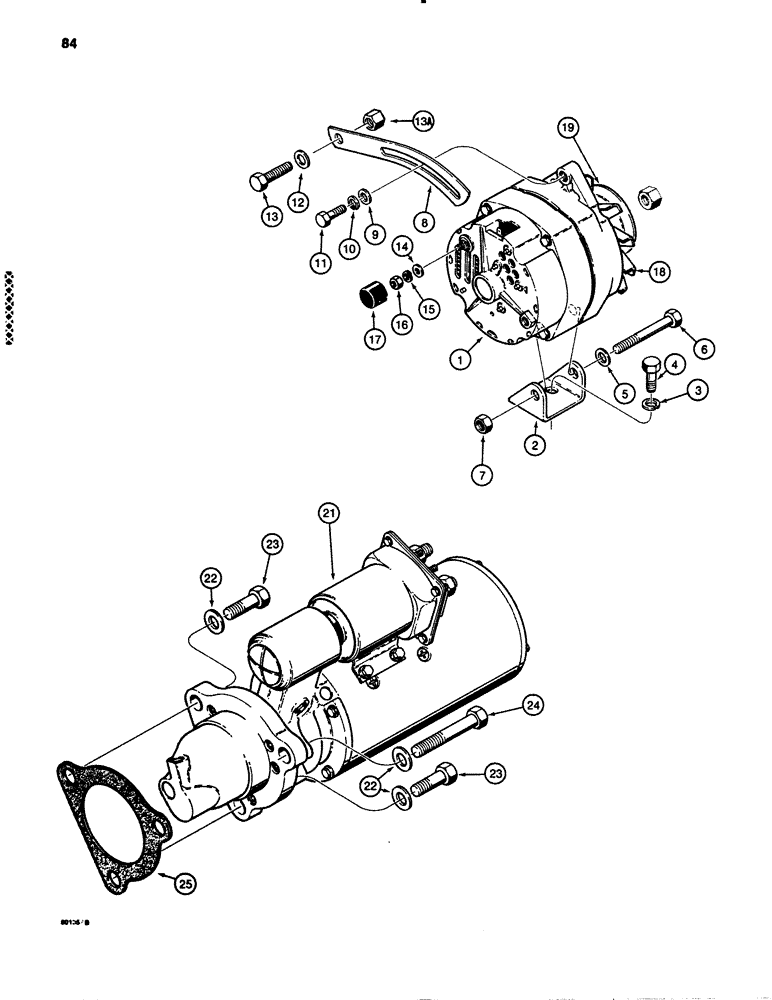

Запчасти Case 780B (084) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list Figures 76 and 77A

1шт.

2

A160391

BRACKET

- alternator mounting

1шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

6

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

7

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

8

A145326

STRAP

- adjusting

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

10

892-1108

LOCK WASHER,M8

1шт.

11

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8)

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

113-2262

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - special

1шт.

13a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

195-16

WASHER,#12

- flat, No. 12

1шт.

15

892-1106

LOCK WASHER,M6

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1.0

1шт.

17

L106774

CAP

- alternator output

1шт.

18

A51560

FAN

- alternator

1шт.

19

L59716

PULLEY

- alternator

1шт.

20

RESERVED

1шт.

21

REF

INSTRUCTION

STARTER - engine, parts list Figures 68-74

1шт.

22

R24323

WASHER

- special

3шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

24

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

25

A27933

GASKET

- starter to flywheel housing, must be ordered with replacement starter

1шт.
