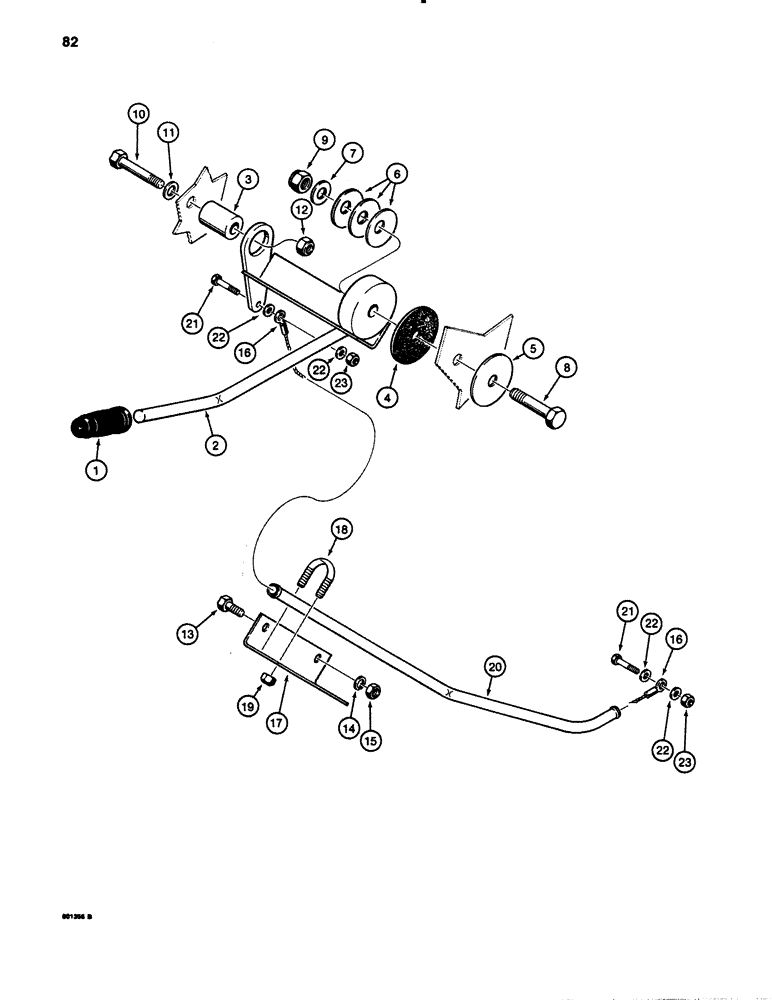

Запчасти Case 780B (082) - HAND THROTTLE CONTROL (04) - ELECTRICAL SYSTEMS

1

L52476

HANDLE

- hand throttle lever

1шт.

2

L108300

LEVER

- backhoe hand throttle

1шт.

3

L102794

SPACER

- mounting

1шт.

4

R15071

DISC

- friction

1шт.

5

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, special, 2-1/4" OD

1шт.

6

R14771

WASHER

BELLEVILLE SPRING - hand throttle lever

3шт.

7

95-8

WASHER,1/2"

flat 1/2"

1шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

9

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

16

D126821

CABLE

- wire, Replaces L103880

1шт.

D126821 was subed to R46465 per ECN D981032 by mistake. R46465 is too long to work in the application. It is recommended to install a knob-style hand throttle. Order kit D137517. See NLB SB 002 87.

1шт.

Old cable was L103880, which subs to D126821 cable and D128905 tube. The reason for this is that the old and new cables and tubes are not interchangeable. Must use L103880 cable with L103584 tube. Must use D126821 cable with D128905 tube.

1шт.

The L103880 number has been scrapped. The old number cannot be mixed with the new number as the new number cable ends will not fit through the old tube.

1шт.

17

L103611

BRACKET

- throttle tube holder

1шт.

18

L78949

U-BOLT

- bracket

2шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

20

D128905

TUBE

- cable, backhoe hand throttle, Replaces L103584

1шт.

The L103584 number has been scrapped. The old number cannot be mixed with the new number as the new number cable ends will not fit through the old tube.

1шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

23

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.
