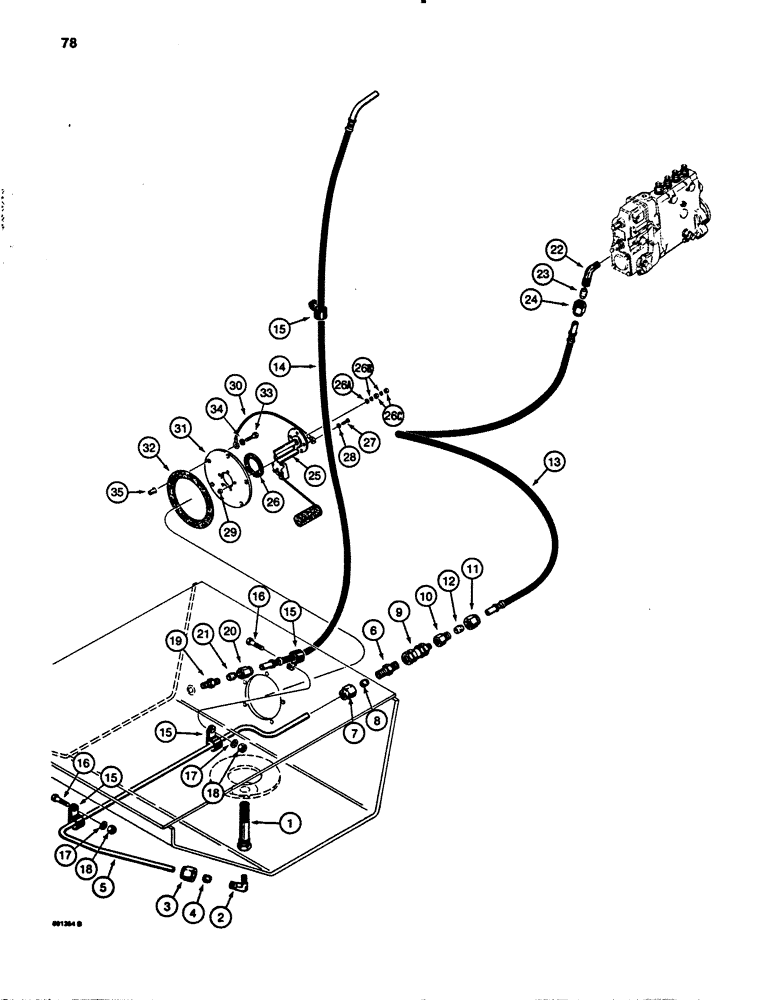

Запчасти Case 780B (078) - FUEL TANK AND FUEL LINES (04) - ELECTRICAL SYSTEMS

1

L58022

STRAINER ASSY.

STRAINER - fuel tank

1шт.

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

FITTING ASSEMBLY - hose, 90 degree, at tank, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

4

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

5

L101839

FUEL TUBE,0.375" OD

TUBE - fuel supply

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING ASSEMBLY - used on models without electric fuel pump, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - fitting, used on models without electric fuel pump

1шт.

7

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting, used on models without electric fuel pump

1шт.

8

222-104

SLEEVE,3/8" Tube

- fitting, used on models without electric fuel pump

1шт.

9

L17627

VALVE

CHECK VALVE - used on models without electric fuel pump

1шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

ASSEMBLY - used on models without electric fuel pump, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - fitting, used on models without electric fuel pump

1шт.

11

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting, used on models without electric fuel pump

1шт.

12

222-104

SLEEVE,3/8" Tube

- fitting, used on models without electric fuel pump

1шт.

13

L40164

HOSE ASSY.

HOSE - fuel supply to injector pump, 46" (1168 mm) long

1шт.

14

L103823

HOSE

- fuel return, 60" (1524 mm) long

1шт.

15

49839

CLAMP

- hose

4шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex self-locking, 1/2" - 13 NC

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - flex type, straight, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

20

87017024

TUBE NUT,1/2"-24

COMPRESSION NUT - fitting

1шт.

21

222-102

SLEEVE,1/4" Tube

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING ASSEMBLY - hose, 90 degree, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

23

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

24

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

25

L101407

SENDER UNIT

SENDER - fuel gauge, used before tractor SN 9146313, Includes: Ref. 26 - 26C

1шт.

25

L110016

SENDER UNIT

SENDER - fuel gauge, used on tractor SN 9146313 and after, Includes: Ref. 26 - 26C

1шт.

26

A11822

GASKET

- sender, used with L101407 and L110016 senders

1шт.

26a

95-3

WASHER,#12

- flat, 3/16"

1шт.

26b

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

26c

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

27

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head, No. 10 - 24 NC x 3/4"

5шт.

28

L77590

WASHER

- special

5шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

30

A31060

ELECTRICAL WIRE

WIRE - sender ground

1шт.

31

L77441

PLATE

- fuel sender

1шт.

32

L79876

GASKET,4.57mm Thk

- plate

1шт.

33

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

35

L13176

NUT

- special

5шт.
