Артикул
Название
Примечание
Количество
1

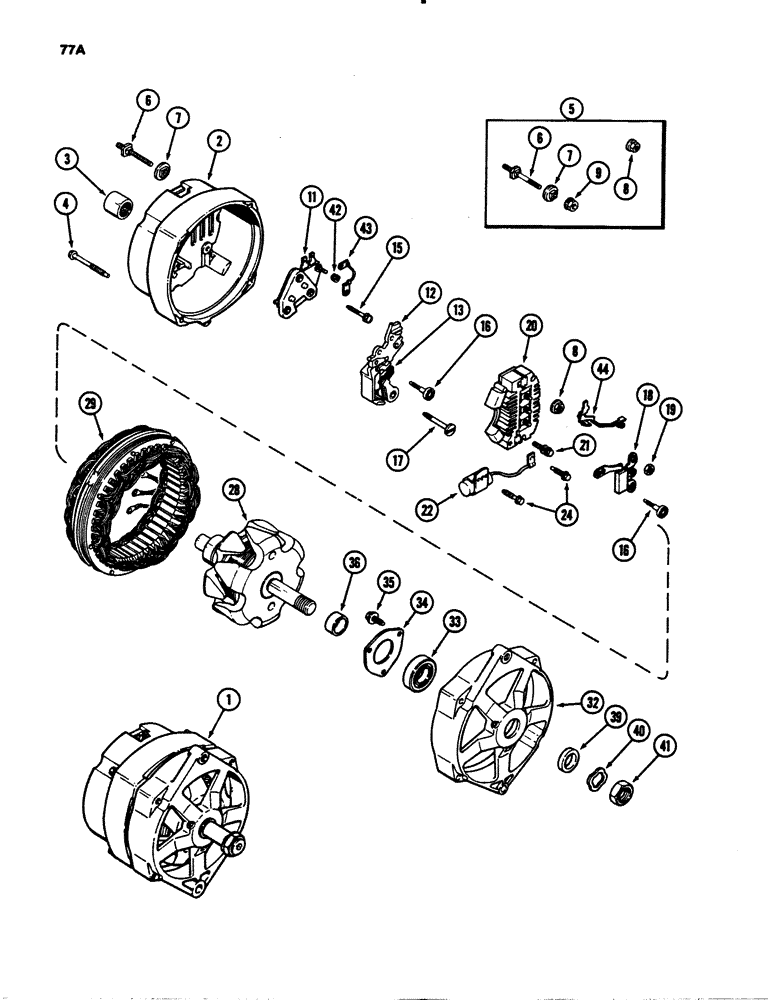

A167152
ALTERNATOR
ALTERNATOR ASSEMBLY - 40 ampere, Delco-Remy No. 1105510, Includes: Ref. 2 - 44
1шт.
1
104260A1R
REMAN-ALTERNATOR
Remanufactured 24 VOLT, 40 AMP Alternator
1шт.
1
104260A1C
CORE-ALTERNATOR
Return Number, 24 VOLT, 40 AMP Alternator
1шт.
2
A47595
FRAME
FRAME ASSEMBLY - slip ring end
1шт.
3
A47578
ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"
BEARING - roller
1шт.
4
163-6
SCREW,Hex, #10 - 24 x 1 3/4"
BOLT - hex, No. 10-24 x 1-3/4 inch
4шт.
5
A47597
TERMINAL CONNECTOR
TERMINAL KIT - battery, Includes: Ref. 6 - 9
1шт.
6
NSS
NOT SOLD SEPARAT
STUD - terminal
1шт.
7
NSS
NOT SOLD SEPARAT
INSULATOR - terminal
1шт.
8
NSS
NOT SOLD SEPARAT
NUT ASSEMBLY - terminal
1шт.
9
NSS
NOT SOLD SEPARAT
NUT ASSEMBLY - terminal
1шт.
11
A46890
REGULATOR
REGULATOR - voltage
1шт.
12
A47042
HOLDER
HOLDER ASSEMBLY - brush, Includes: Ref. 13
1шт.
13
A47987
BRUSH, COMMUTATOR
BRUSH BRUSH - alternator
2шт.
15
A47043
SCREW,#8 - 32 x 21"
SCREW - brush holder, grounded
1шт.
16
A45223
SCREW,Spcl, #8 - 32 x 1 1/8"
SCREW - brush holder, insulated
1шт.
17
A47581
SCREW,#8 - 32 x 1.43"
SCREW - brush holder, retaining
1шт.
18
A48339
DIODE
DIODE - trio
1шт.
20
A46942
ELEC CONNECTOR
RECTIFIER BRIDGE - alternator
1шт.
21
A45221
SCREW,Hex Wshr Hd, #8 - 32 x 0.99"
SCREW - rectifier bridge attaching
1шт.
22
A47734
CAPACITOR
CAPACITOR - alternator
1шт.
24
A45228
SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc
SCREW - capacitor bracket
2шт.
28
A46945
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
29
A49388
STATOR
STATOR ASSEMBLY - alternator
1шт.
32
A46933
FRAME
FRAME - drive end
1шт.
33
A65781
BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"
BEARING - ball, drive end
1шт.
34
R15101
PLATE
PLATE - bearing retainer
1шт.
35
A46941
SCREW,Hex Washer, #10 - 24 x 0.52"
SCREW - bearing plate retaining
3шт.
36
A48261
COLLAR
COLLAR - rotor shaft, inner
1шт.
39
A47580
COLLAR
COLLAR - rotor shaft, outer
1шт.
40
R16171
SPRING WASHER
WASHER - lock, pulley nut
1шт.
41
A25546
NUT
NUT - pulley and fan retaining
1шт.
42
A45368
NUT
NUT - lead
1шт.
43
A45369
ELECTRICAL WIRE
WIRE LEAD - regulator
1шт.
44
A46931
TERMINAL CONNECTOR
TERMINAL - relay
1шт.
Выбрано товаров: 36
