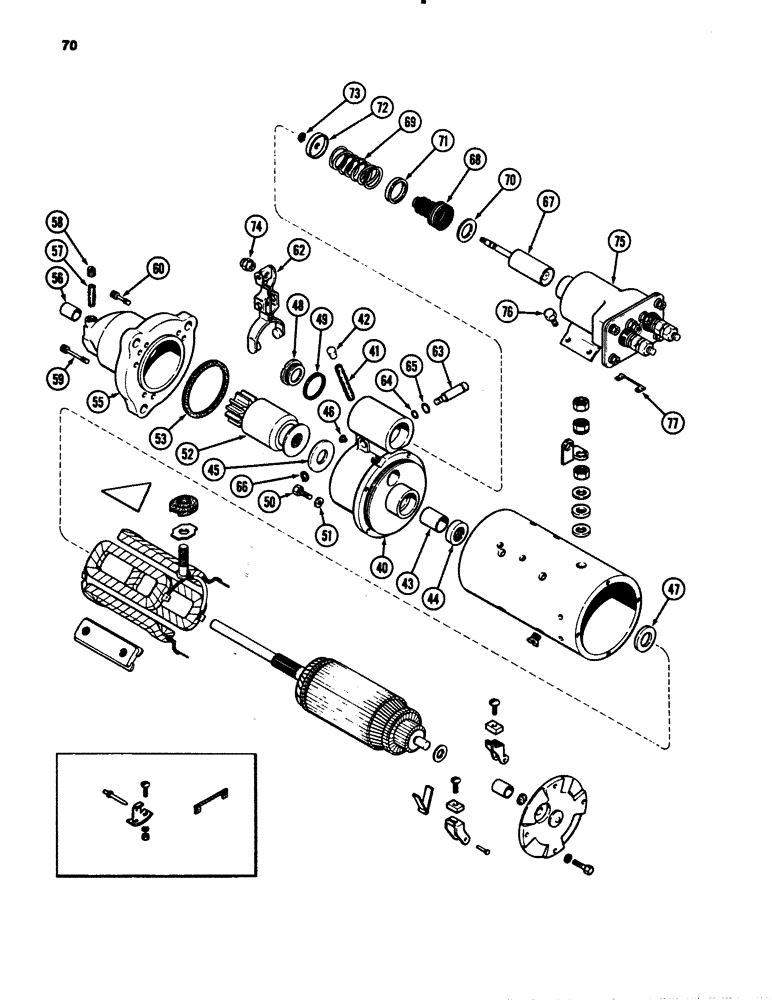

Запчасти Case 780B (070) - R46156 AND L106562 STARTER (04) - ELECTRICAL SYSTEMS

R46156

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 40 - 76 and Ref. 1 - 37 on Figure 68

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number, Starter

1шт.

L106562

STARTER MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 40 - 76 and Ref. 1 - 37 on Figure 68

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number, Starter

1шт.

40

A47896

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref. 41 - 45

1шт.

41

A47888

WICK

WICK - oil

1шт.

42

A47889

PLUG

PLUG - oil wick

1шт.

43

A47261

BUSHING

BUSHING - housing (Replaces A47848)

1шт.

44

R21582

OIL SEAL

SEAL - oil

1шт.

45

R15145

DISC

WASHER - brake

1шт.

46

A47897

PLUG

PLUG - lever housing, rubber

1шт.

47

A40892

WASHER

WASHER - thrust, drive end

1шт.

48

R21587

PLUG

PLUG - housing

1шт.

49

A41924

GASKET

GASKET - plug

1шт.

50

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

51

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

52

A47523

DRIVE

DRIVE ASSEMBLY - starter

1шт.

53

R21562

GASKET

GASKET - drive housing to drive end

1шт.

55

A44340

HOUSING

HOUSING ASSEMBLY - drive end, Includes: Ref. 56 - 58

1шт.

56

A47257

BUSHING

BUSHING - housing

1шт.

57

R15023

WICK

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - 1/8 inch PT, slotted head

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing, socket head, long

5шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing, socket head, short

1шт.

62

D32547

LEVER

LEVER - shift control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - shaft, 1/4 inch (6 mm) ID

1шт.

65

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - shaft, 3/8 inch (10 mm) ID

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

PLUNGER - solenoid

1шт.

68

A42308

BOOT

BOOT - plunger (rubber)

1шт.

69

A41242

SPRING

SPRING - plunger return

1шт.

70

A41922

WASHER

WASHER - spring seat

1шт.

71

A43380

BACK-UP RING

RETAINER- plunger spring, inner

1шт.

72

A43419

SEAT

RETAINER- plunger spring, outer

1шт.

73

G46146

SNAP RING,#37, Ext

Ring, Snap, , retainer to plunger #37, Ext

1шт.

74

131-31

LOCK NUT,5/16"-24, G8

NUT - 5/16 inch NF special

1шт.

75

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid to body

4шт.

77

A42408

ELECTRICAL WIRE

WIRE LEAD - solenoid ground

1шт.
