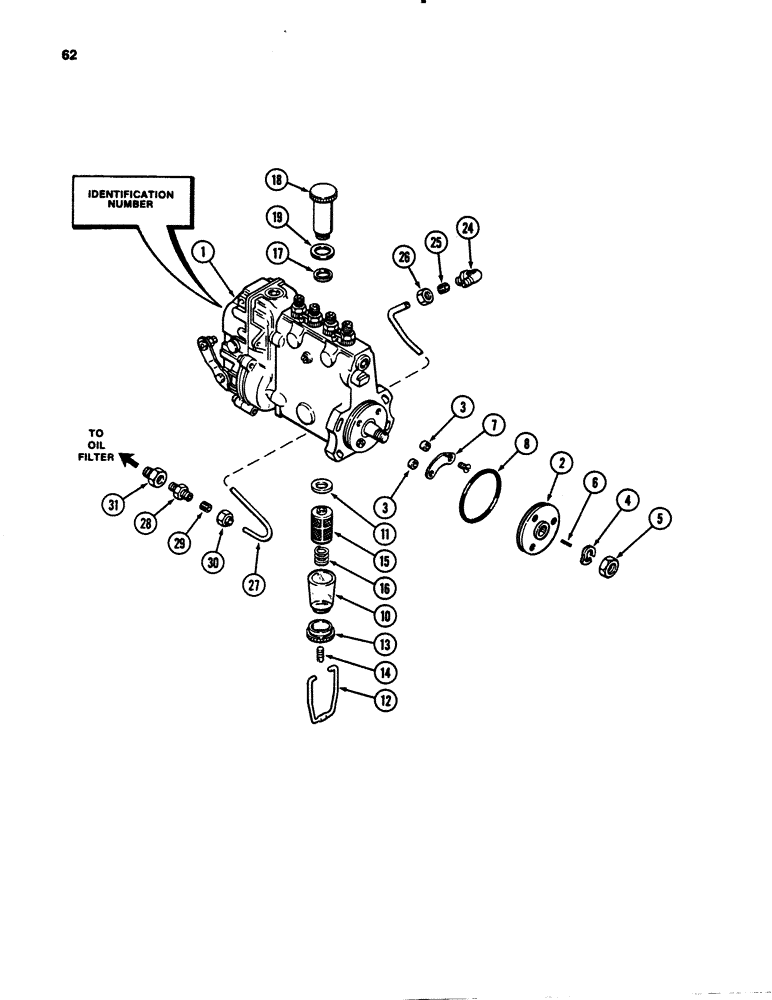

Запчасти Case 780B (062) - INJECTION PUMP, 336BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A154548

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, 2200 RPM (Part No. stamped on pump), Includes: Ref. 2 - 19

1шт.

1

A157034

PUMP

ASSEMBLY - fuel injection, 2200 RPM (Part No. stamped on pump), Includes: Ref. 2 - 19

1шт.

This is a CVC (constant velocity cam) type pump.

1шт.

2

A41857

HUB

- pump drive (with 3/16 inch keyway)

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub retaining (14 mm threads)

1шт.

6

A41850

KEY

- hub to shaft, 3/16 inch wide

1шт.

7

A41858

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub

1шт.

10

A43347

BOWL

- filter (glass)

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl hanger

1шт.

13

A43348

NUT

BAILNUT - bowl seat

1шт.

14

A43349

STUD

- bailnut lock and adjustment

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element tension

1шт.

17

A43351

SEAL

- hand pump

1шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand pump

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degee, 1/4 tube 1/2-24 thread x 1/8 inch PT, Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

27

A136902

TUBE

- oil gallery to injection pump

1шт.

28

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - straight, 1/4 tube 1/2-24 thread x 1/4 inch PT, Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

31

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8 to 1/4 inch PT

1шт.
