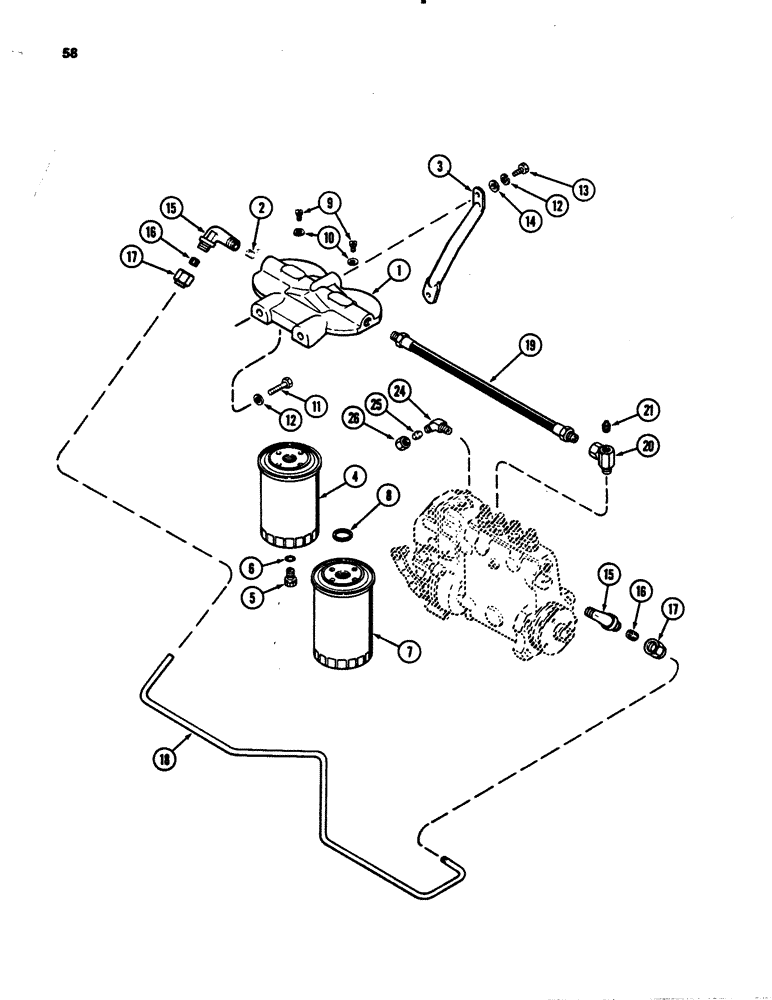

Запчасти Case 780B (058) - FUEL FILTER SYSTEM, 336BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- slotted head, 1/8 inch PT

1шт.

3

A155421

SUPPORT

- filter head

1шт.

NLS

NO LONGER SERVICED

ELEMENT KIT - filter replacement, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage, Includes: Ref. 5 and 6

1шт.

5

G49080

PLUG

- 12 point head, filter drain, 3/8-24, plastic

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - filter to head (Order A41745) (Reference No. A42315)

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a new gasket. Reference numbers in description are for Cares use only and cannot be ordered separately.

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, fillister head

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, aluminum

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

195-104

WASHER,3/8"

- flat, 3/8 x 1 x 1/16 inch (10 x 25 x 2 mm)

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, 5/16 tube 9/16 thread x 1/4 inch PT, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16 tube 9/16-24 inch thread

1шт.

18

A62341

TUBE

- pump to first stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- second stage, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - hose

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8 inch PT

1шт.

24

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSEMBLY - 45 degree, 5/16 tube 9/16-24 thread x 1/4 inch PT, Includes: Ref. 25 and 26

1шт.

25

222-103

SLEEVE,5/16" Tube

1шт.

26

222-113

TUBE NUT,9/16"-24

NUT - hex, for 5/16 tube 9/16-24 inch thread

1шт.
