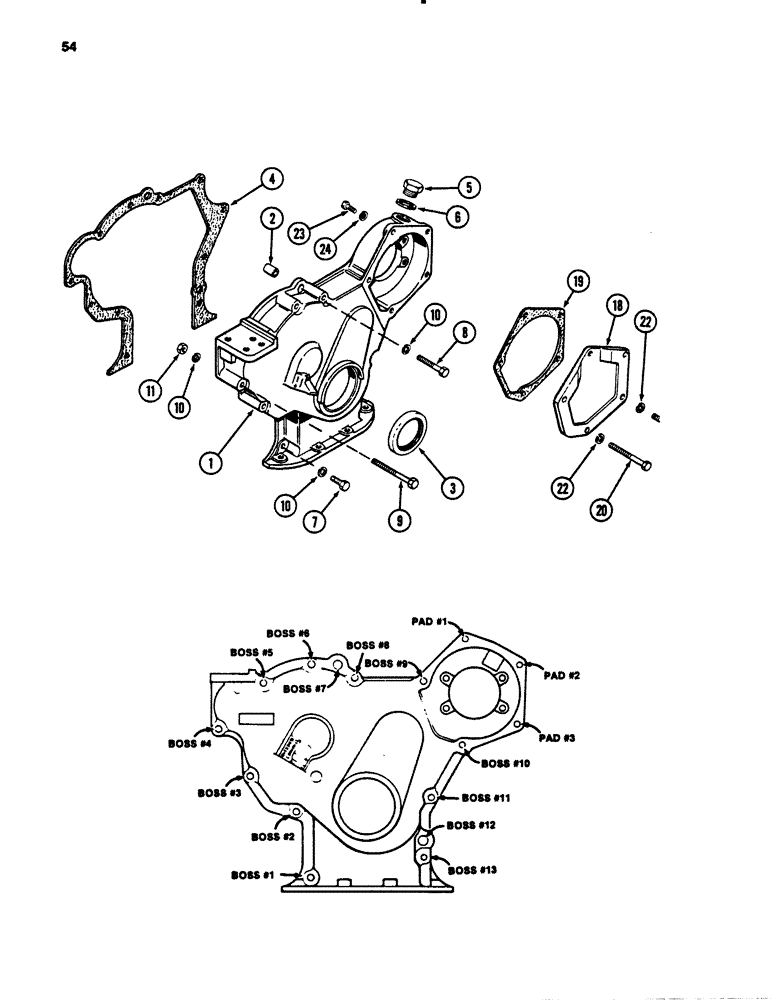

Запчасти Case 780B (054) - TIMING GEAR COVER, 336BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A166141

HOUSING

COVER ASSEMBLY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

SLEEVE - cover locating, 3/8 x 5/8 x 1 inch (10 x 16 x 25 mm)

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss No. 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Boss No. 3, 6 and 8)

3шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss No. 4 and 5)

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

18

A61053

COVER

- fuel pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss No. 9 and 10)

2шт.

21

A151921

BOLT

- hex, 3/8 NC x 1-1/4 inch

1шт.

(Head drilled for anti-tamper wire) (Pad No. 2 and 3)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad No. 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.
