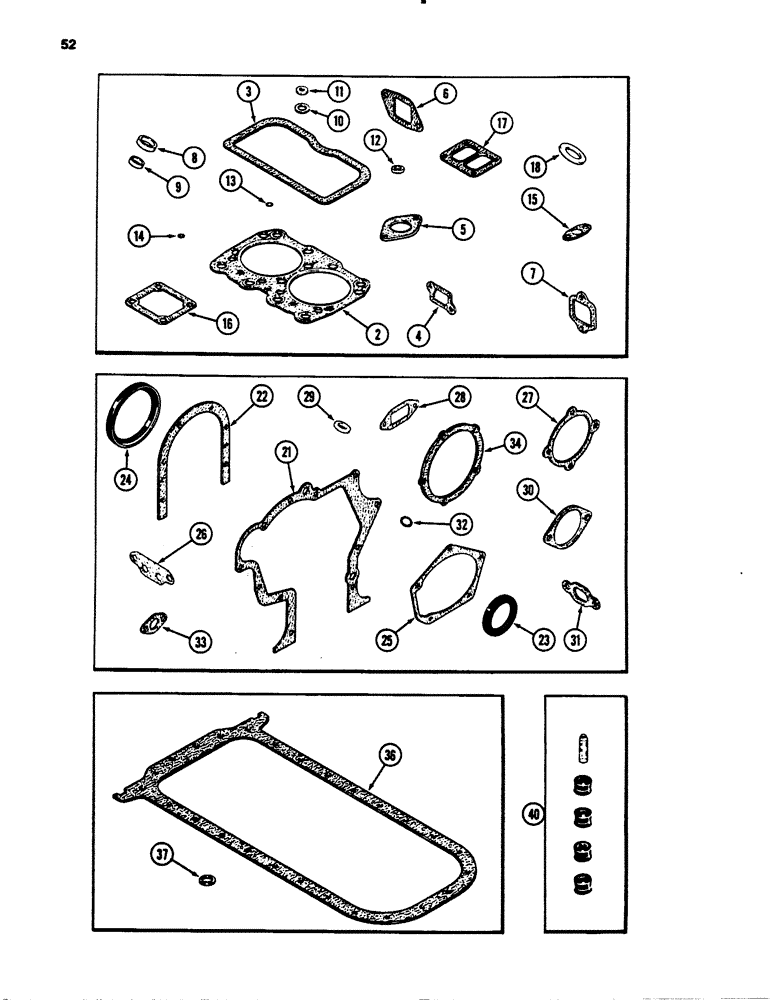

Запчасти Case 780B (052) - ENGINE GASKET KITS, 336BDT DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

A157302

GASKET

KIT - valve grind, Includes: Ref. 2 - 18

1шт.

For complete engine overhaul order 1-A157302, 1-A44075 and 1-A42221.

1шт.

2

A138397

CYLINDER HEAD GASKET

cylinder head

2шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

cylinder head cover (Replaces A65734)

2шт.

4

A166147

GASKET

water manifold

2шт.

5

A166148

GASKET

thermostat housing

1шт.

The illustration shows this part as a single hole gasket. A166148 is actually a double hole gasket. Proper part nbr for single hole gasket is G46907 (now subs to 1342775C1).

1шт.

6

A58662

MANIFOLD GASKET

intake manifold

4шт.

7

A58895

GASKET

exhaust manifold, metal faced (with turbocharger)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injector nozzle

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube, lower, 11/16 x 1-1/4 x 1/4 inch

2шт.

11

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube, upper, nylon

1шт.

12

A142098

GROMMET

cover studs (Replaces A23684 gasket)

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem (rubber) (See Ref. 40)

8шт.

15

A58892

GASKET,1.59mm Thk

turbocharger oil drain tube

1шт.

16

A58910

GASKET

turbocharger air intake elbow

1шт.

17

A58899

GASKET,0.45mm Thk

turbocharger

2шт.

18

1342829C1

GASKET

fuel nozzle; Replaces A76640

4шт.

A44075

GASKET KIT

cylinder block, Includes: Ref. 21 - 34

1шт.

For complete engine overhaul order 1-A157302, 1-A44075 and 1-A42221.

1шт.

21

A58612

GASKET

timing gear cover, cyl block kit

1шт.

22

A32830

GASKET

rear seal retainer, cyl block kit

1шт.

23

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

oil, crankshaft, front, cyl block kit

1шт.

24

A62050

OIL SEAL

oil, crankshaft, rear, cyl block kit

1шт.

25

A58615

GASKET

fuel pump cover, cyl block kit

1шт.

26

A58756

OIL PAN GASKET SET

oil filter base, cyl block kit

1шт.

27

A58646

GASKET

water pump to body, cyl block kit

1шт.

28

A58649

GASKET

water pump body to head, cyl block kit

1шт.

29

A58613

SEALING WASHER

timing window plug, cyl block kit

1шт.

30

A58617

GASKET

auxiliary pump hole, cyl block kit

1шт.

31

A58670

GASKET

(Not used this application), cyl block kit

1шт.

32

A64434

O-RING,0.93" ID x 1.142" x 0.106"

lube oil filter base, cyl block kit

3шт.

33

A58680

OIL PAN GASKET SET

(Not used this application), cyl block kit

1шт.

34

A76656

GASKET

(Not used this application), cyl block kit

1шт.

A42221

GASKET KIT

oil pan, Includes: Ref. 36 and 37

1шт.

For complete engine overhaul order 1-A157302, 1-A44075 and 1-A42221.

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

37

A27968

RING

drain plug, copper, oil pan kit

1шт.

40

M20614

SEAL KIT

valves (Includes 4 seals and installation sleeve), oil pan

1шт.
