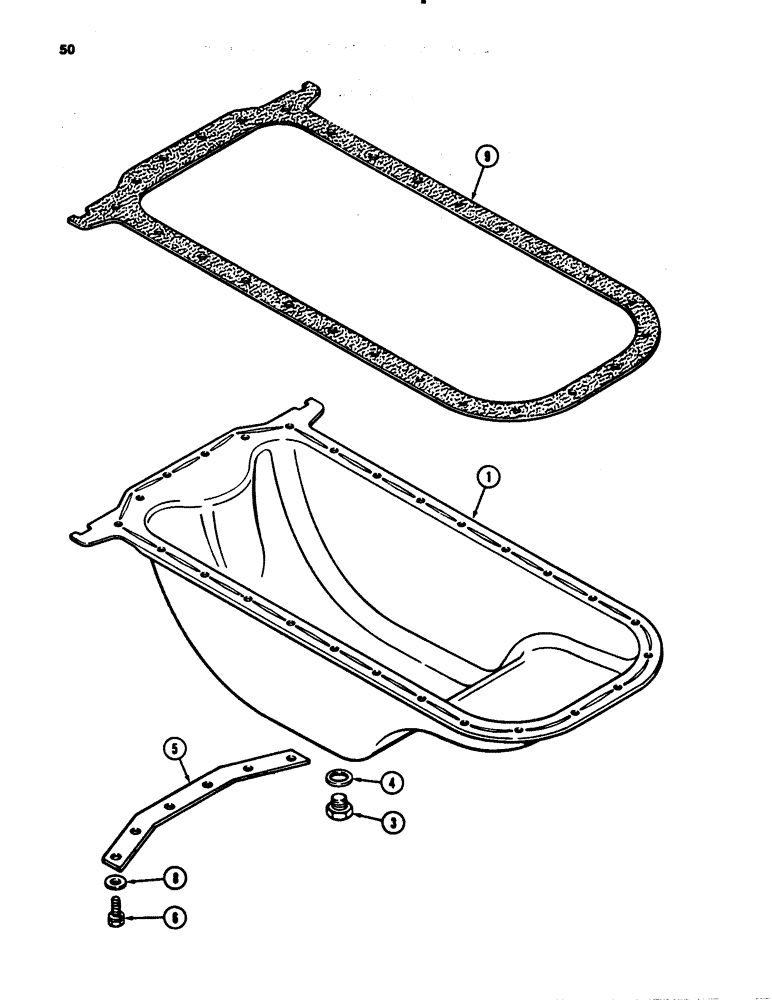

Запчасти Case 780B (050) - OIL PAN, 336BDT DIESEL ENGINE (02) - ENGINE

1

A154963

PAN ASSY.

PAN ASSEMBLY - oil

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex, 3/8 NC x 7/8 inch (Includes lockwasher)

26шт.

8

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

32шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 53)

1шт.
