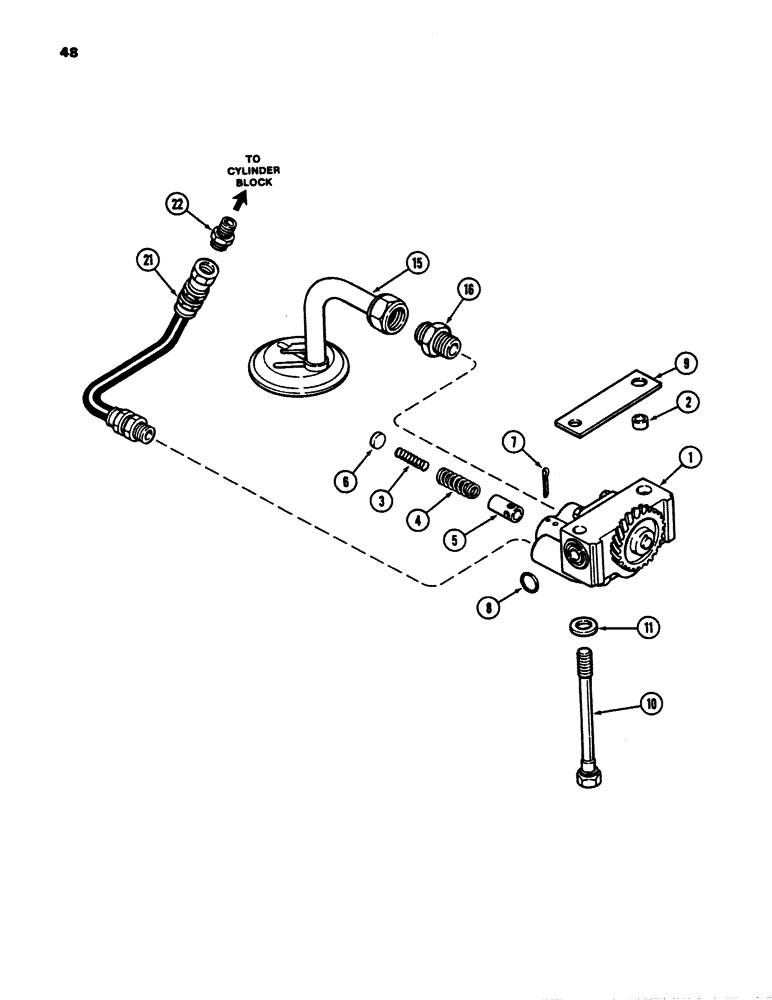

Запчасти Case 780B (048) - OIL PUMP, 336BDT DIESEL ENGINE, FRONT MOUNTED (02) - ENGINE

1

A155987

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump locating

1шт.

3

A155976

SPRING

- relief valve, inner

1шт.

4

A155980

SPRING

- relief valve, outer

1шт.

5

A65083

VALVE

- relief

1шт.

6

41-1011

PLUG,Cup, 11/16"

- cup type, 11/16 inch (17 mm)

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump

1шт.

9

A58859

SHIM,.005" Thk

Pump to brg. cap (0.127 mm) .005" Thk

1шт.

10

A66949

STEP BOLT

BOLT - pump and bearing cap, 5/8 NC x 7-1/4 inch

2шт.

11

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolt

2шт.

15

A154965

SCREEN

TUBE ASSEMBLY - suction, with screen

1шт.

16

A142004

CONNECTOR, ELEC

CONNECTOR - suction, Serial Range: tube-pump

1шт.

21

A155196

HOSE,0.50" ID x 19.00"

- Oil pump to Block (Replaces A143670) 0.50" ID x 19.00"

1шт.

22

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - straight, 5/8 tube 7/8-14 thread x 1/2 inch PT

1шт.
