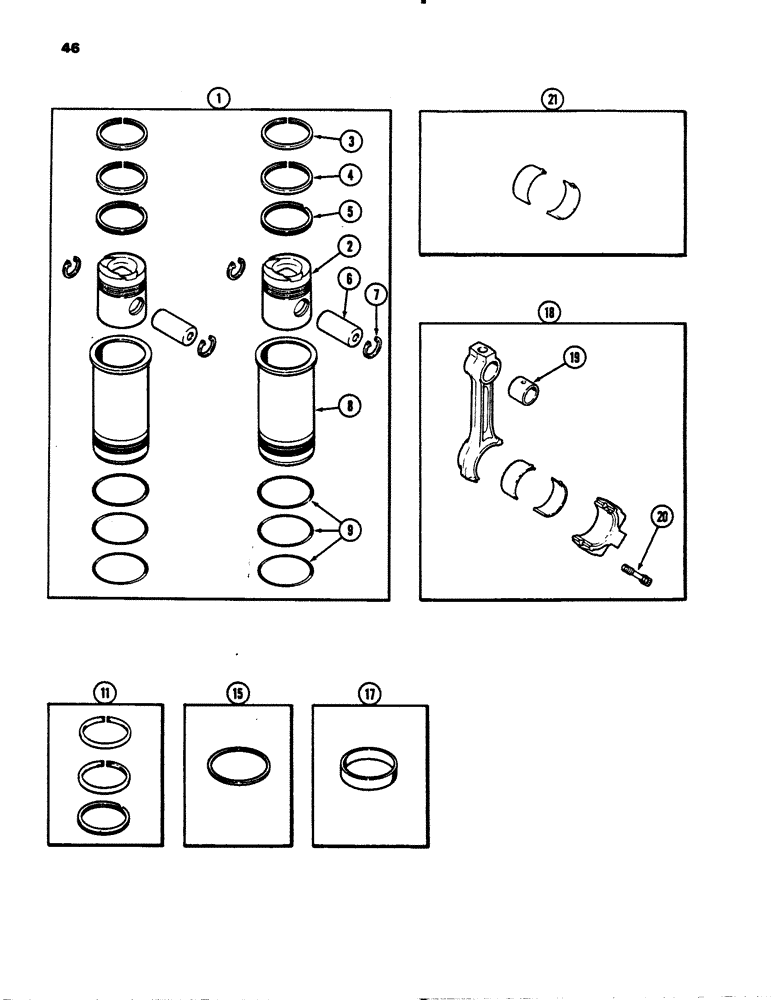

Запчасти Case 780B (046) - PISTONS AND SLEEVES, 336BDT DIESEL ENGINE, CONNECTING ROD (02) - ENGINE

1

A151067

PISTON

PISTON AND SLEEVE KIT - engine, for A152485 piston, with balancer (Includes: Ref 2 - 9) (Set of 2)

2шт.

1

A152177

SET

PISTON AND SLEEVE KIT - engine, for A146697 piston (Set of 2) without balancer

2шт.

2

A152485

PISTON

PISTON - engine, (Part No. stamped on part) with balancer 4-5/8 inch diameter bore (117 mm)

2шт.

2

A146697

PISTON

PISTON - engine, (Part No. stamped on part) without balancer 4-5/8 inch diameter bore (117 mm)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, 3 grooves

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

11

A44054

RING

RING KIT - piston (Single piston)

4шт.

15

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 mm) (Repairs only)

1шт.

15

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 mm) (Repairs only)

1шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - sleeve

4шт.

18

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

18

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap

2шт.

21

A41758

BEARING LINER

INSERT - rod bearing (Set of 2) (Standard)

4шт.

21

A41899

BEARING LINER

INSERT - rod bearing (Set of 2) 0.002 inch undersize (0.0508 mm)

4шт.

21

A41900

BEARING LINER

INSERT - rod bearing (Set of 2) 0.010 inch undersize (0.254 mm)

4шт.

21

A41901

BEARING LINER

INSERT - rod bearing (Set of 2) 0.020 inch undersize (0.508 mm)

4шт.

21

A41902

BEARING LINER

INSERT - rod bearing (Set of 2) 0.030 inch undersize (0.762 mm)

4шт.
