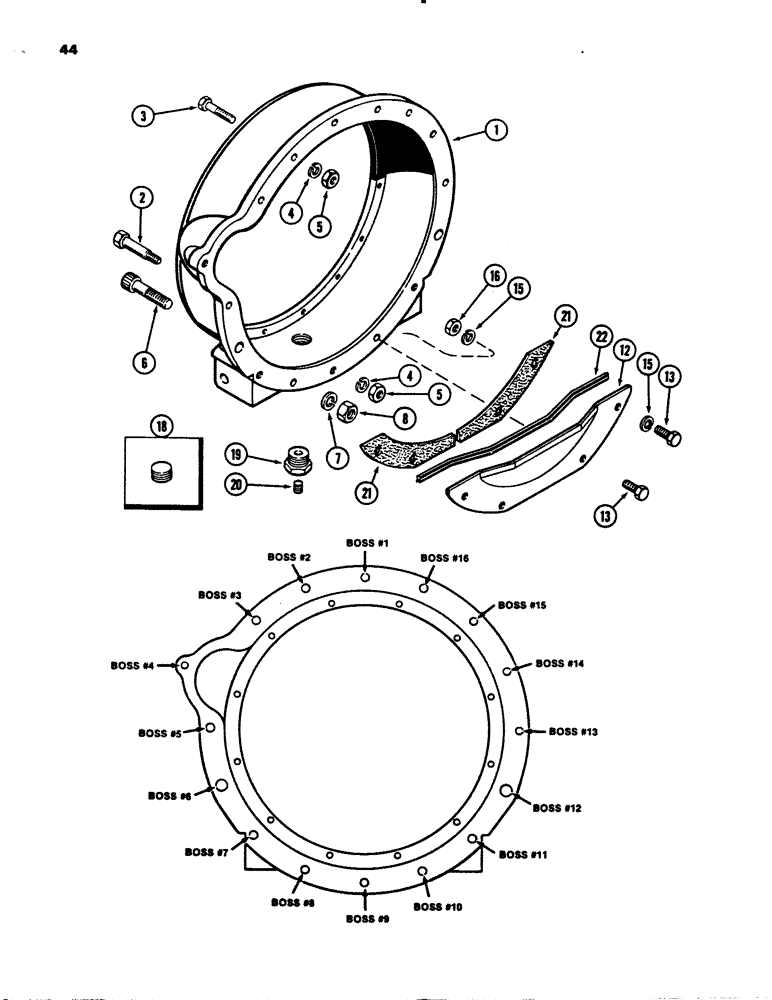

Запчасти Case 780B (044) - FLYWHEEL HOUSING, 336BDT DIESEL ENGINE (02) - ENGINE

1

A166156

HOUSING

ASSEMBLY - flywheel (Includes: Ref 19 and 20)

1шт.

2

A149765

STEP BOLT

BOLT - dowel, hex, 2-21/64 inch

1шт.

2

A149764

STEP BOLT

BOLT - dowel, hex, 3-9/64 inch

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Holes 1, 2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Holes 3, 14 and 15)

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 12 point head, 3/4 NC x 3 inch (Holes 6 and 12)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A58931

GUARD

SHIELD - dust, flywheel

1шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch (Holes 8 and 10)

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Holes 7 and 11) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

18

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head, 1 inch PT

1шт.

19

221-1062

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducer, 1 to 1/4 inch PT

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square socket pipe, 1/4 inch PT

1шт.

21

L111430

GASKET

- dust shield, flywheel

2шт.

22

L109461

SEAL

- dust shield, flywheel

1шт.
