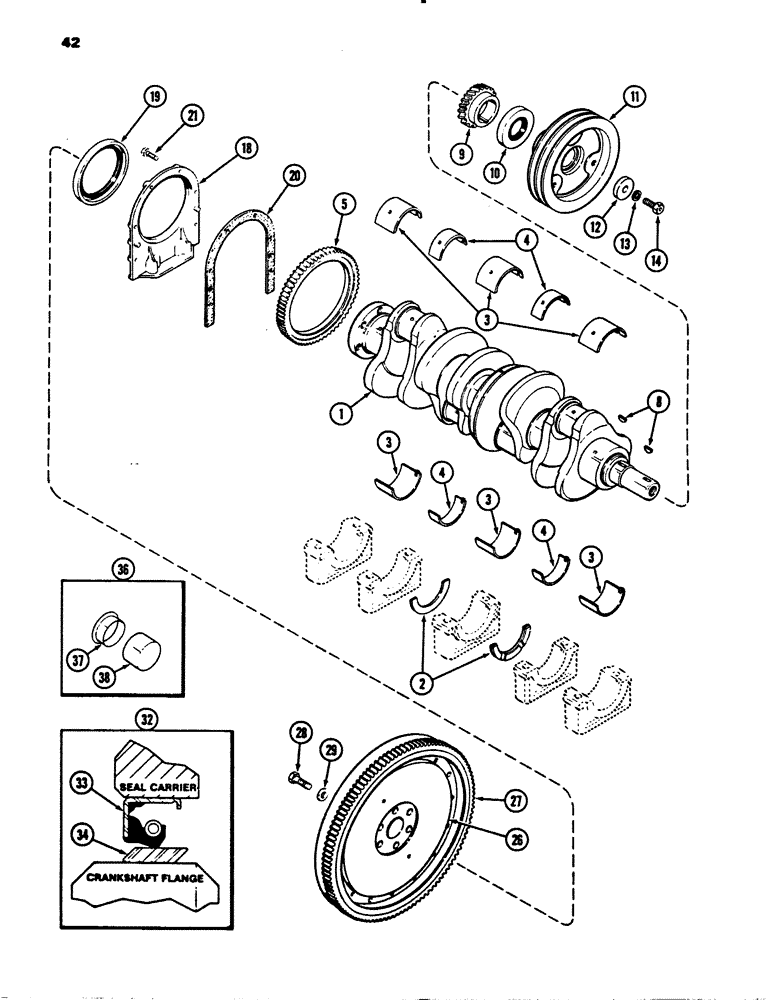

Запчасти Case 780B (042) - CRANKSHAFT AND FLYWHEEL, 336BDT DIESEL ENGINE (02) - ENGINE

1

A65109

SHAFT

CRANKSHAFT - engine (Order A153831)

1шт.

2

A58565

WASHER

thrust (Standard) 0.185 inch (4.76 mm)

2шт.

2

A42447

WASHER

thrust (Oversize) 0.191 inch (4.80 mm)

2шт.

3

A43090

BEARING LINER

INSERT - main , wide (Set of 2) (Standard)

3шт.

3

A43124

LINING

INSERT - main bearing, wide (Set of 2) 0.002 inch undersize (0.0508 mm)

3шт.

3

A43125

CRANKSHAFT BEARING

INSERT - main bearing, wide (Set of 2) 0.010 inch undersize (0.254 mm)

3шт.

3

A43126

LINING

INSERT - main bearing, wide (Set of 2) 0.020 inch undersize (0.508 mm)

3шт.

3

A43127

LINING

INSERT - main bearing, wide (Set of 2) 0.030 inch undersize (0.762 mm)

3шт.

4

A43089

BEARING LINER

INSERT - main, narrow (Set of 2) (Standard)

2шт.

4

A43120

LINING

INSERT - main bearing, narrow (Set of 2) 0.002 inch undersize (0.0508 mm)

2шт.

4

A43121

SET OF CONN ROD BRGS STD

INSERT - main bearing, narrow (Set of 2) 0.010 inch undersize (0.254 mm)

2шт.

4

A43122

LINING

INSERT - main bearing, narrow (Set of 2) 0.020 inch undersize (0.508 mm)

2шт.

4

A43123

SET OF CONN ROD BRGS STD

INSERT - main , narrow (Set of 2) 0.030 inch undersize (0.762 mm)

2шт.

5

A150125

GEAR

crankshaft balancer drive

1шт.

8

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

9

A66404

GEAR

crankshaft

1шт.

10

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

oil, front (Replaces A62049)

1шт.

11

A166097

PULLEY

crankshaft

1шт.

12

A156428

WASHER

pulley

1шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- hex, 5/8 NF x 1-1/2 inch

1шт.

18

A57457

RETAINER

rear oil seal

1шт.

19

A62050

OIL SEAL

oil, rear (See Ref. 32)

1шт.

20

A32830

GASKET

retainer

1шт.

21

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex Sems, 3/8 NC x 1-1/4 inch

6шт.

26

A153264

WHEEL

FLY ASSEMBLY - crankshaft, Includes: Ref. 27

1шт.

27

A27920

GEAR

starter ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch

6шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

hardened

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft rear, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

oil, rear, wear seal kit

1шт.

34

NSS

NOT SOLD SEPARAT

wear seal kit

1шт.

36

A154684

SLEEVE

WEAR SEAL KIT - oil, crankshaft front, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kit

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL - installation, wear seal kit

1шт.
