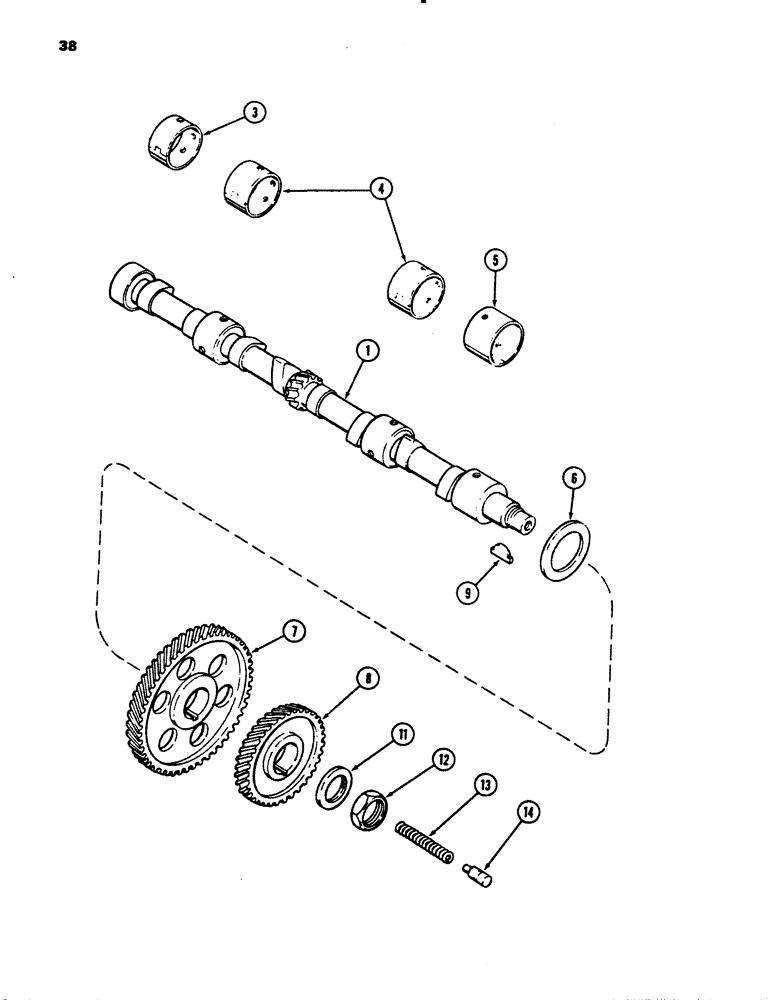

Запчасти Case 780B (038) - CAMSHAFT, 336BDT DIESEL ENGINE (02) - ENGINE

1

A66742

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-3/16 inch (30 mm) wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16 inch (37 mm) wide

2шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-11/16 inch (43 mm) wide

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro

1шт.

11

A31038

THRUST WASHER

- camshaft nut

1шт.

12

A58595

NUT

- camshaft

1шт.

13

CASA27853

SPRING

- plunger, camshaft bumper

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
