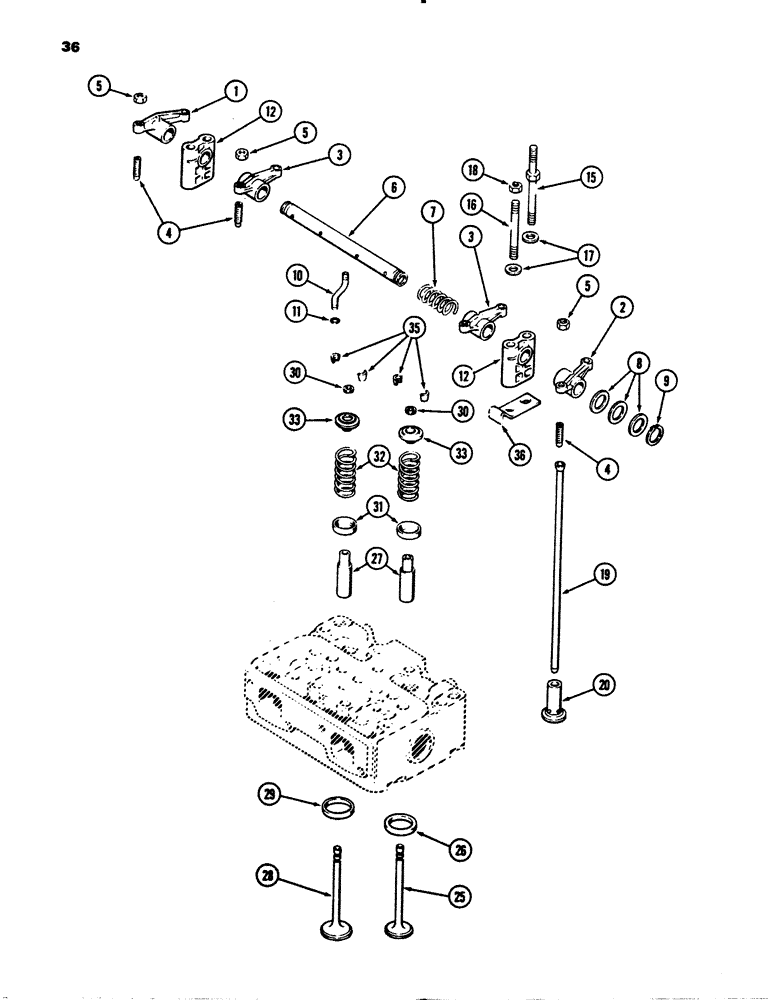

Запчасти Case 780B (036) - VALVE MECHANISM, 336BDT DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve, first and third cylinders, Includes: Ref. 4 and 5

2шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve, second and fourth cylinders, Includes: Ref. 4 and 5

2шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valves, Includes: Ref. 4 and 5

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

1шт.

6

A150545

SHAFT

- rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

- rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , washer #87, Ext

4шт.

10

A58657

TUBE

- oil, rocker shaft

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

2шт.

12

A61128

BRACKET

- rocker arm shaft

4шт.

15

A67121

STUD

- bracket, 7/16 NC x 6 inch

4шт.

16

A58659

STUD

- bracket, 7/16 NC x 4-5/16 inch

4шт.

17

195-29

WASHER,7/16"

- flat, 1/2 x 1 x 1/16 inch (13 x 25 x 2 mm)

8шт.

18

25-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

19

A157328

ROD

- push (Replaces A141841)

8шт.

20

A20865

TAPPET

LIFTER - push rod (Standard)

8шт.

20

A21857

TAPPET

LIFTER - push rod, 0.010 inch (0.254 mm) oversize

8шт.

25

A41753

VALVE

- exhaust (Set of 2)

2шт.

26

A66192

INSERT

- exhaust valve seat

4шт.

27

A41783

GUIDE

- intake and exhaust valves

8шт.

28

A44575

VALVE

- intake (Set of 2)

2шт.

29

A66191

INSERT

- intake valve seat

4шт.

30

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

31

A66328

SEAT

- valve springs

8шт.

32

A66444

SPRING

- valves

8шт.

33

A66336

ROTATOR

ROTOCOIL - exhaust and intake valves

4шт.

35

A27872

LOCK

- valve keepers

16шт.

36

A157197

STRAP

- rocker shaft bracket

4шт.
