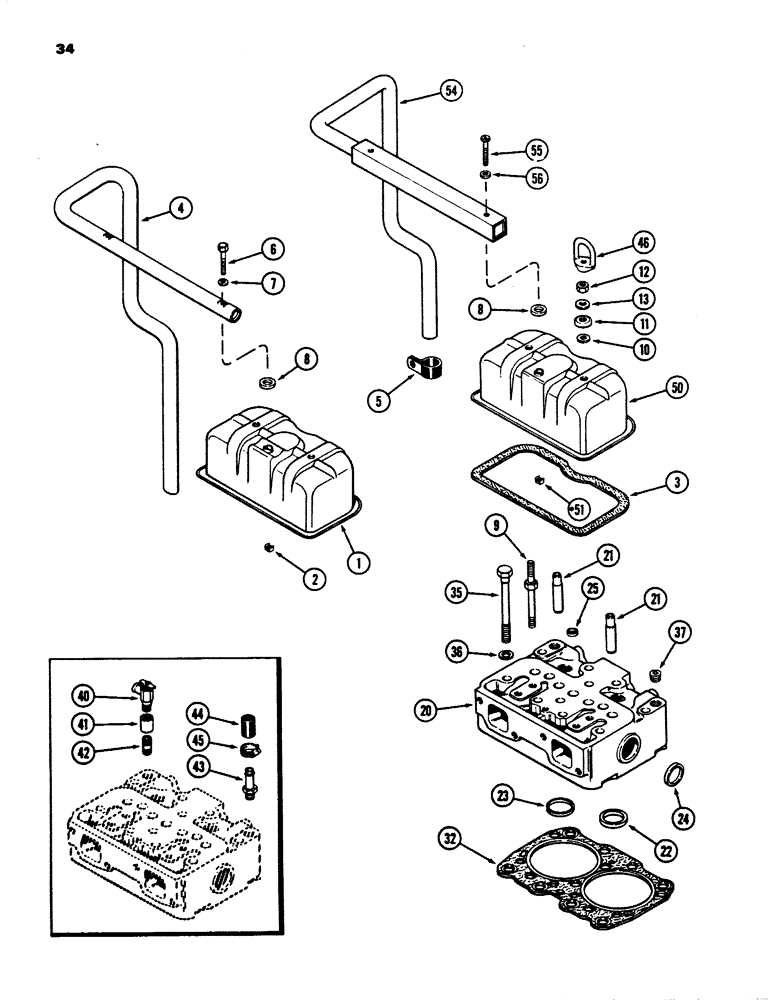

Запчасти Case 780B (034) - CYLINDER HEAD AND COVER, 336BDT DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head (See Ref. 50), Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET - cover (See Figure 52)

2шт.

4

A64994

TUBE

TUBE - breather (See Ref. 54)

1шт.

5

D34033

CLAMP

CLAMP - breather tube

1шт.

6

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

2шт.

7

A34133

GASKET

GASKET - tube, upper

2шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

2шт.

9

A67121

STUD

STUD - cover, 7/16 NC x 6 inch

4шт.

10

A142098

GROMMET

GROMMET - cover stud (Replaces A23684 gasket)

4шт.

11

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud (Replaces A23683)

4шт.

12

25-107

NUT,7/16"-14, G5

NUT - hex, 7/16 inch NC

4шт.

13

195-29

WASHER,7/16"

WASHER - flat, 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

4шт.

20

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 21 - 25

2шт.

20

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

2шт.

20

AC152265

CORE-CYLINDER HEAD

Return Number

2шт.

21

A41783

GUIDE

GUIDE intake and exhaust valves

4шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A66191

INSERT

INSERT - intake valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch (41 mm)

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch (19 mm)

3шт.

32

REF

INSTRUCTION

GASKET - cylinder head (See Figure 52)

2шт.

35

A62732

STEP BOLT

BOLT - hex, 5/8 NC x 5-5/8 inch (Replaces A58630)

20шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - hardened

20шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - hex socket head, 3/8 inch PT

4шт.

40

A16764

VALVE

VALVE - water shutoff

1шт.

41

221-337

COUPLING,Pipe, 3/8" NPT

CONNECTOR - female, 3/8 inch PT

1шт.

42

221-1158

FITTING

CONNECTOR - male, 3/8 inch PT

1шт.

43

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

CONNECTOR - 3/8 PT x 5/8 inch hose barb end

1шт.

44

A46201

PLUG

PLUG - rubber

1шт.

45

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

46

A60567

EYE

EYE - engine lifting

2шт.

321-6102

DECAL

DECAL - engine specifications (Not shown)

1шт.

50

A166170

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 51, 54, 55 and 56

2шт.

51

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

54

A166174

TUBE

SPARE PART TUBE - breather (If equipped)

1шт.

55

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - pan head machine, 1/4 NC x 2-1/2 inch

2шт.

56

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

WASHER - flat, tube screw

2шт.
