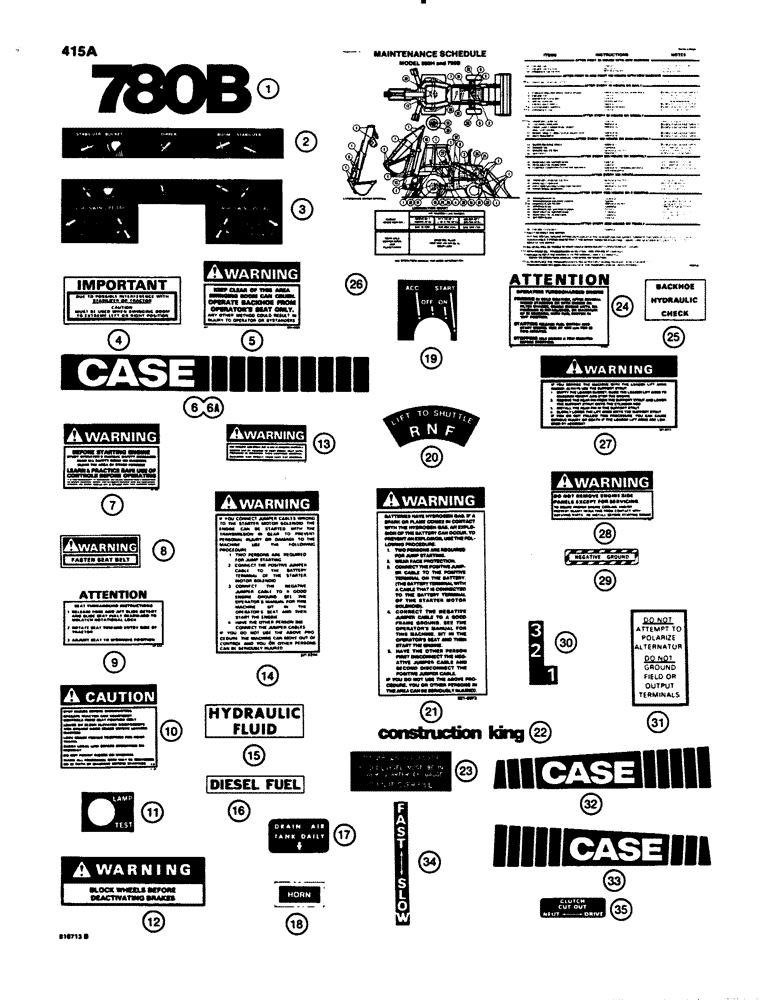

Запчасти Case 780B (415A) - DECAL KIT, USED ON MODELS WITH BROWN AND TAN COLOR SCHEME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
L36255
KIT
- decal, 780B, replaces L36256 for service, also includes decals for the 680H that are not used on this model, Includes: Ref. 1 - 35 and Ref. 36 - 54 on Figure 415C
1шт.
1
L111345
DECAL
- 780B
4шт.
2
D123977
DECAL
- operator information, upper
1шт.
3
D123976
DECAL
- operator information, lower
1шт.
4
321-3058
DECAL
- important, swing
1шт.
5
321-4481
DECAL
- Warning, swing boom
2шт.
6
D123959
DECAL
- Case, with treads, rear, tan, if used
1шт.
6a
D123951
DECAL
- Case, with treads, rear, brown, if used
1шт.
7
321-3705
DECAL
- Warning, before starting engine
1шт.
8
321-3060
DECAL
- seat belt
1шт.
9
321-6215
DECAL
- seat instructions
1шт.
10
321-3022
DECAL
- instruction
1шт.
11
D123942
DECAL
- Warning, lamp test
1шт.
12
321-6328
DECAL
- Warning, parking brake
2шт.
13
321-5734
DECAL
- Warning, hot coolant
1шт.
14
321-6244
DECAL
- Warning, jump start instructions
2шт.
15
321-229
DECAL
- Hydraulic Fluid
1шт.
16
321-230
DECAL
- Diesel Fuel
1шт.
17
321-1077
DECAL
- air drain location
1шт.
18
321-3294
DECAL
- horn
1шт.
19
D123946
DECAL
- ignition switch
1шт.
20
L111363
DECAL
- shuttle lever
1шт.
21
321-5973
DECAL
- Warning, batteries
1шт.
22
L112009
DECAL
- Construction King
2шт.
23
L113157
DECAL
- hydraulic oil level
2шт.
24
321-5692
DECAL
- Turbo Engine
1шт.
25
321-2798
DECAL
- backhoe hydraulic check
1шт.
26
L111474
BOARD
DECAL - maintenance chart
1шт.
27
321-6413
DECAL
- Warning, loader frame strut
1шт.
28
321-5701
DECAL
- Warning, rotating parts
2шт.
29
321-704
DECAL
- starter, negative ground
1шт.
30
L111361
DECAL
- range control
1шт.
31
321-1061
DECAL
- alternator instructions
1шт.
32
L111348
DECAL
- hood side, left-hand
1шт.
33
L111353
DECAL
- hood side, right-hand
1шт.
34
L111355
DECAL
- slow-fast
1шт.
35
321-2785
DECAL
- clutch cutout
1шт.
Выбрано товаров: 37
