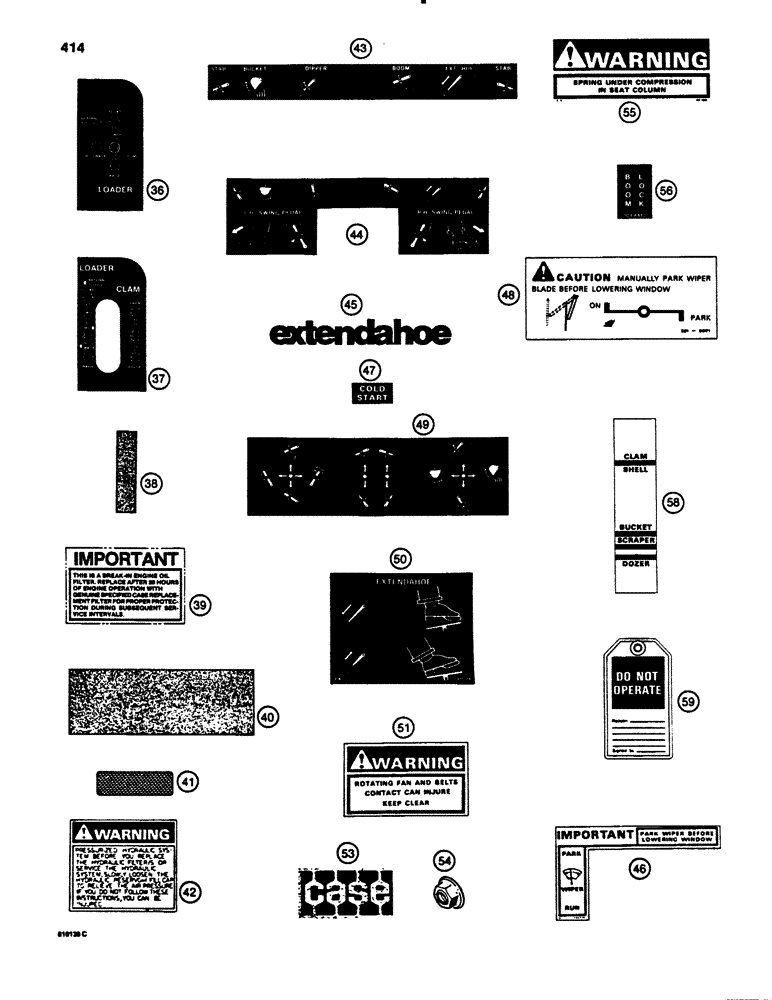

Запчасти Case 780B (414) - DECAL KIT, USED ON MODELS WITH BLACK AND YELLOW COLOR SCHEME (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT - decal, Includes: Ref. 36 - 54 and Ref. 1 - 35 on Figure 412

1шт.

36

321-6211

DECAL

loader lever, two spool

1шт.

37

321-6212

DECAL

loader lever, three spool

1шт.

38

D55216

PAD,2" x 9"

STRIP - nonskid, steps

1шт.

39

3213863

DECAL - oil filter

1шт.

40

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment, side

2шт.

41

D87870

DECAL

reflector, red, rear

2шт.

42

321-6666

DECAL

Warning, hydraulic oil pressure

2шт.

43

321-5572

DECAL

Extendahoe controls, upper

1шт.

44

321-5573

DECAL

Extendahoe controls, lower

1шт.

45

321-3139

DECAL

Extendahoe

2шт.

46

F45339

DECAL

Important, Wiper, Park, Run, if used

1шт.

47

321-4278

DECAL

Cold Start

1шт.

48

321-5801

DECAL

caution, windshield wiper position, if used

1шт.

49

321-5571

DECAL

twin lever controls

1шт.

50

321-5595

DECAL

Extendahoe pedal

1шт.

51

321-3596

DECAL

fan warning

2шт.

52

321-2654

DECAL

RESERVED

1шт.

53

321-4739

EMBLEM

Case, on grille

1шт.

54

131-431

PUSH-ON NUT,Self, Threading, 1/4"

push, attaches emblem to grille

2шт.

55

321-3055

DECAL

Warning, seat spring

1шт.

This Ref. is not included in the decal kit and must be ordered separately.

1шт.

56

321-6412

DECAL

Boom Lock

1шт.

This Ref. is not included in the decal kit and must be ordered separately.

1шт.

57

RESERVED

1шт.

58

321-2654

DECAL

4-in-1 bucket indicator

1шт.

This Ref. is not included in the decal kit and must be ordered separately.

1шт.

59

321-4614

TAG

- Do not operate

1шт.

This Ref. is not included in the decal kit and must be ordered separately.

1шт.
