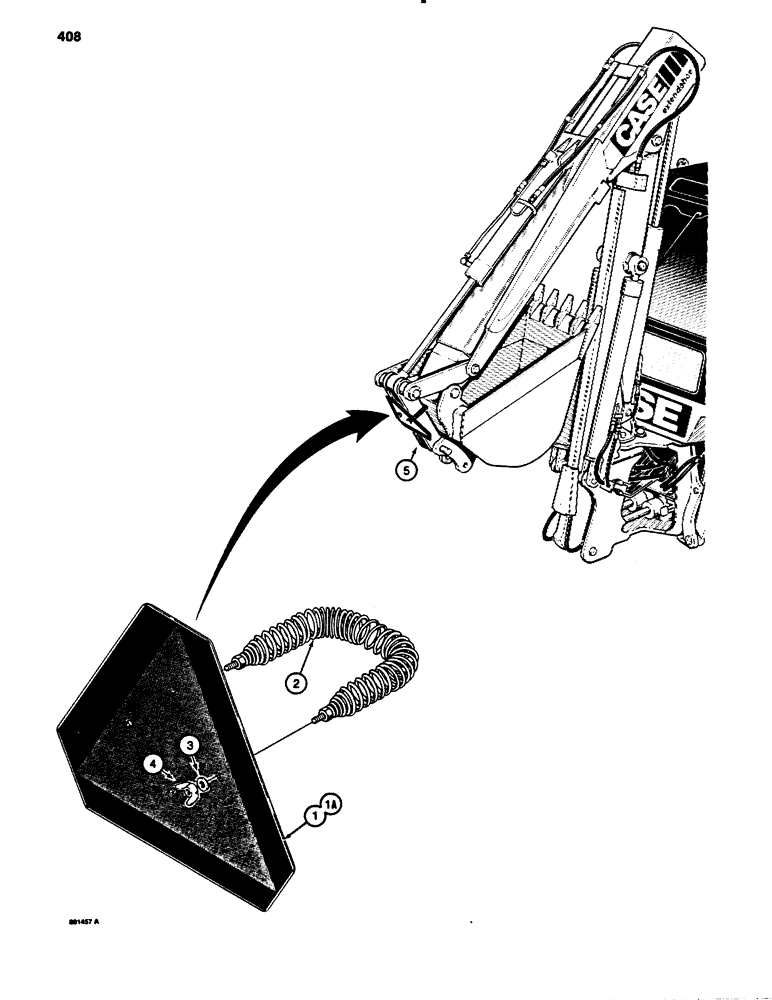

Запчасти Case 780B (408) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

D123347

WARNING SIGN

EMBLEM - slow moving vehicle, Includes: Ref. 1A

1шт.

1a

321-4311

DECAL

- emblem

1шт.

2

D52564

SPRING

- fastener, emblem

1шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

4

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

5

REF

INSTRUCTION

LINKS - backhoe bucket, see Figures 330 and 332 for related parts

2шт.
