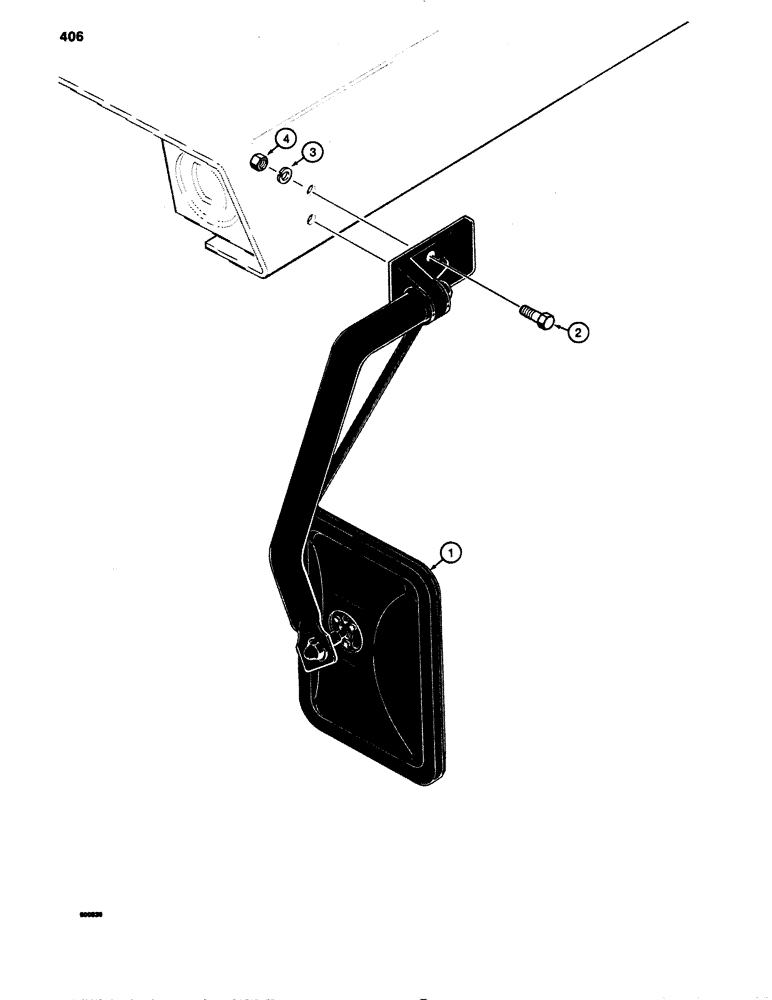

Запчасти Case 780B (406) - REAR VIEW MIRROR, CAB AND CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

D100187

KIT

KIT - rear view; Includes D91400 Mirror/A and (2) 187-1069 5/16 x 3/4 Self-Tapping Screw for Mounting Mirror to Frame; No Longer Available, Order Components

1шт.

D91400

MIRROR ASSY.

Includes One Each 9803951 Mirror, 88904 1/2 x 1-1/2 Bolt, 492-21050 1/2 Lock Washer, 495-81271 13.5 x 24 x 2.5 mm Washer, 87398978 Mounting Bracket, 87515108 Mirror Arm; No Longer Available, Order Components

1шт.

9803951

REAR VIEW MIRROR

1шт.

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1шт.

492-21050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

495-81271

WASHER,5/8" x 1 1/4" x .134"

Flat Washer, 13.5 x 24 x 2.5 mm

1шт.

87398978

BRACKET

Mounting Bracket

1шт.

87515108

ARM ASSY.

Mirror Arm

1шт.

2

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

Self-Tapping, 5/16 x 3/4; If Used; Not Illustrated

2шт.
