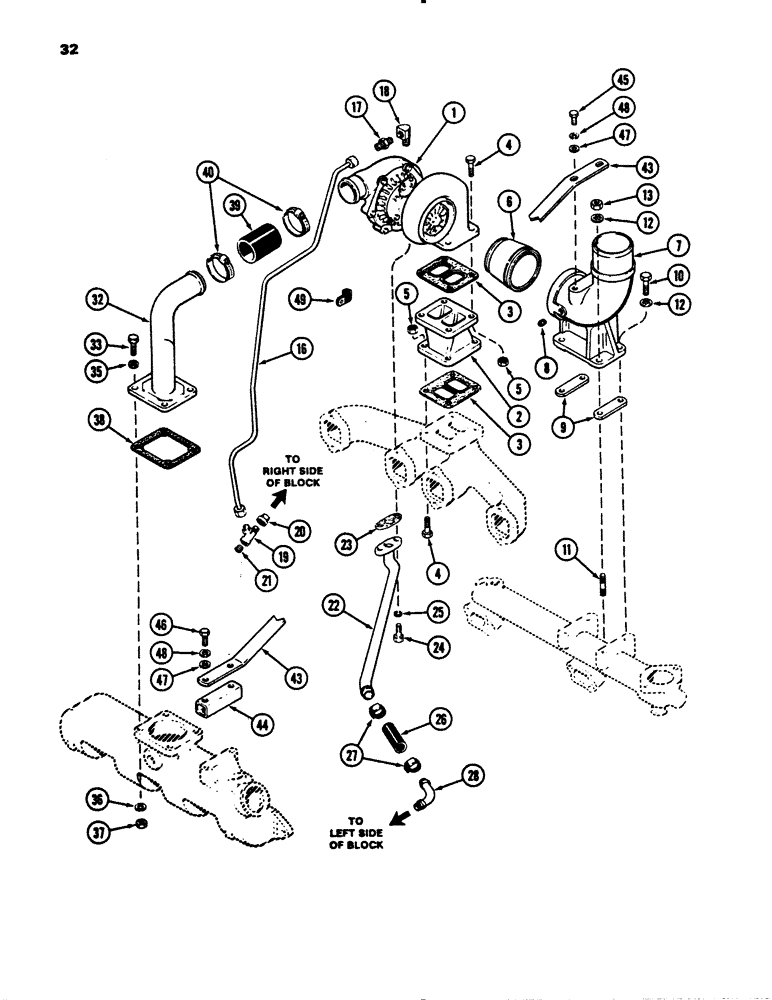

Запчасти Case 780B (032) - TURBOCHARGER SYSTEM, 336BDT DIESEL ENGINE (02) - ENGINE

1

A157337

TURBOCHARGER

ASSEMBLY - engine, new (Replaces A151278)

1шт.

1

A48194

REMAN-TURBOCHARGER

Turbocharger Assembly Remanufactured

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base (upper and lower)

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

5

131-903

NUT,3/8"-16

NUT - Seez-pruf hex, 3/8 inch NC

8шт.

6

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

7

A61941

ELBOW

- exhaust

1шт.

8

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head pipe, 1/4 inch PT

1шт.

9

A59237

SPACER

- elbow to water manifold

2шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

11

A59077

STUD

- 3/8 NC x 1-7/8 inch

1шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

131-903

NUT,3/8"-16

NUT - hex Seez-Pruf, 3/8 inch NC

4шт.

16

A155669

TUBE

ASSEMBLY - oil supply

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - straight, 3/8 tube 5/8-24 thread x 1/4 inch PT

1шт.

18

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 inch PT (brass)

1шт.

19

221-1692

TEE,Street, 3/8" NPT

- oil supply tube, 3/8 inch PT

1шт.

20

222-4028

CONNECTOR, ELEC

CONNECTOR - straight, 3/8 tube 5/8-24 thread x 3/8 inch PT

1шт.

21

221-1843

PLUG

- hex socket head pipe, 3/8 inch PT

1шт.

22

A59228

TUBE

- oil drain

1шт.

23

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16 to 1-3/4 inch

2шт.

28

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

32

A150450

ELBOW

- air intake (formed tube)

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

35

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

38

A58910

GASKET

- elbow to intake manifold

1шт.

39

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

43

A61942

BRACE

- exhaust, Serial Range: elbow-manifold

1шт.

44

A67057

SPACER

- elbow, Serial Range: brace-manifold

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

47

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

49845

CLAMP

CLIP - supply tube

1шт.
