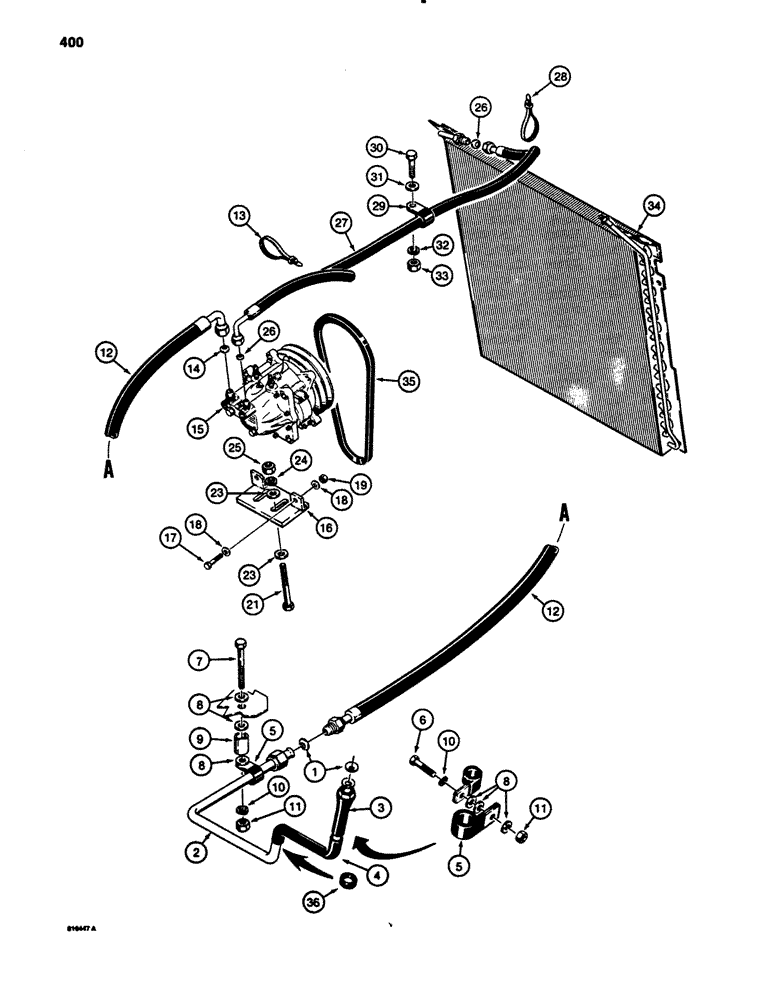

Запчасти Case 780B (400) - AIR CONDITIONER RETURN LINES, CAB TO COMPRESSOR AND CONDENSOR (09) - CHASSIS/ATTACHMENTS

1

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" OD tube

2шт.

2

L107628

TUBE,0.75" OD

- from cab, 3/4" OD

1шт.

3

L105501

COVER - rubber, tube, 19" (483 mm) long 0.75" ID x 1.4" OD x 19" L

1шт.

4

REF

INSTRUCTION

COVER - rubber, tube, 10-11/16" (272 mm) long, cut from L105501 shown above

1шт.

5

49855

CLAMP

- tube

2шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

6шт.

9

D36524

BUSHING

SPACER - clamp

1шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

L104375

HOSE -, Serial Range: cab-compressor

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8"

1шт.

15

REF

INSTRUCTION

COMPRESSOR - air conditioner, parts list Figure 402

1шт.

16

L107600

BRACKET

- compressor mounting, upper

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

195-522

WASHER,5/16"

- flat, 3/8", plated

4шт.

19

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

20

RESERVED

1шт.

21

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

22

RESERVED

1шт.

23

R24718

WASHER

- flat, 1/2"

4шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

26

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2"

2шт.

27

L104455

HOSE -, Serial Range: compressor-condenser

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

D40471

CLAMP

- hose

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

34

L104391

CONDENSER - air conditioner, for mounting hardware, see Figure 398

1шт.

35

L45532

V-BELT 52.00" L, Drive, Air conditioner compressor 52.00" L

1шт.

36

L104424

GROMMET - tubes, in floor plate

1шт.
