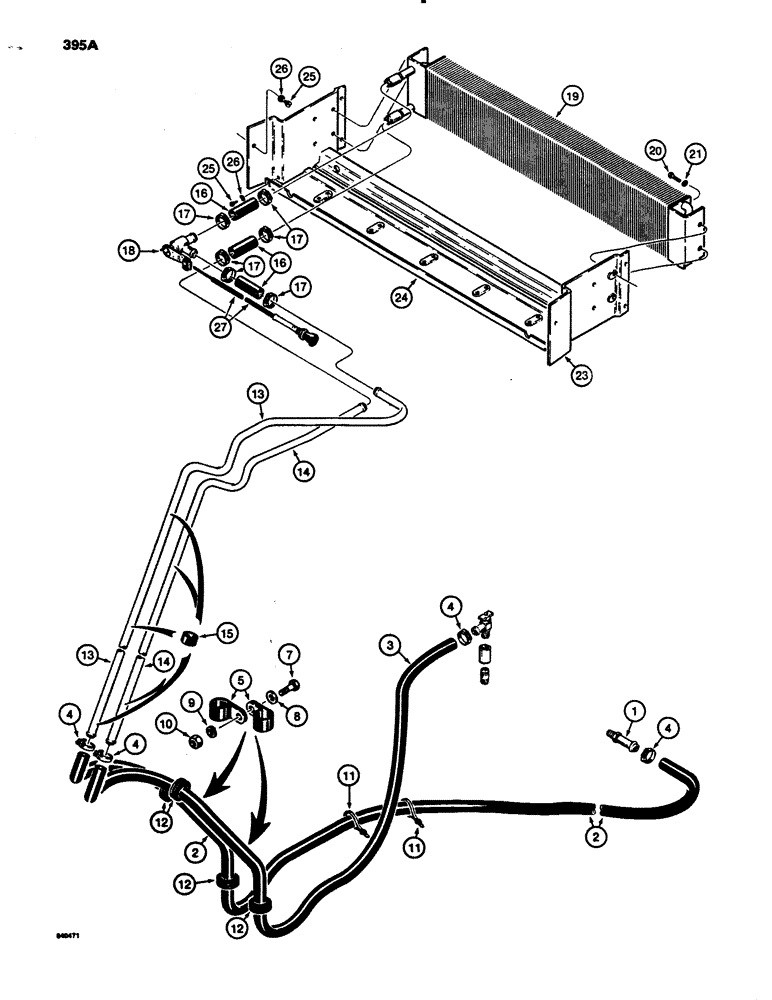

Запчасти Case 780B (395A) - CAB HEATING SYSTEM, MODELS WITHOUT TEE CONNECTION TO AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

BARB FITTING - straight, 3/4" NPT, at water pump, if used

1шт.

1

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

BARB FITTING - straight, 1/2" NPT, at water pump, if used

1шт.

2

REF

INSTRUCTION

HOSE - heater return to water pump, 108" (2743 mm) long, cut from A42610 bulk

1шт.

3

REF

INSTRUCTION

HOSE - heater supply, 88" (2235 mm) long, cut from A42610 bulk

1шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

5

R21385

CLAMP

- P-style

4шт.

6

RESERVED

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

A7808

GROMMET

- hoses at floor plate and fender

4шт.

13

F44939

HEATER TUBE

TUBE - return

1шт.

14

F44938

HEATER TUBE

TUBE - supply

1шт.

15

F64347

SEAL

INSULATOR - tubes

5шт.

16

REF

INSTRUCTION

HOSE - heater tubes to flow control valve and core, 2" (51 mm) long, cut from A42610 bulk

3шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

6шт.

18

F63865

VALVE

ELBOW CONTROL VALVE - heater

1шт.

19

F45204

HEAT-EXCHANGER

CORE - heater, interchangeable with F44713 and F45210 heater cores

1шт.

20

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

F96715

SHEET

BRACKET - heater core, one-piece, no longer used, order Refs. 23 and 24, not shown

1шт.

23

F96821

BRACKET

- heater core

1шт.

24

F96820

PANEL

- lower, heater core

1шт.

25

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, slotted hex washer head, No. 10 - 16 NC x 1/2", plated

6-8шт.

26

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6-8шт.

27

REF

INSTRUCTION

CABLE - heater control, see Figure 382 Ref. 14, part No. F44755

1шт.

A42610

LARGE HOSE

HOSE - bulk, 50 ft. (1524 cm) long

1шт.
