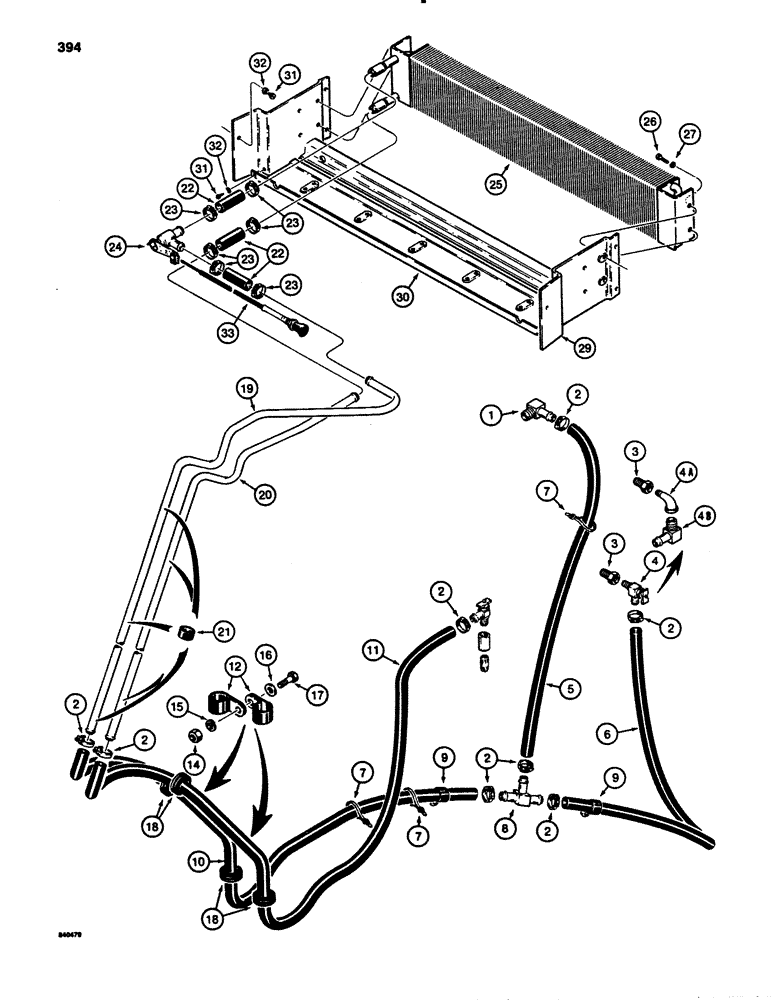

Запчасти Case 780B (394) - CAB HEATING SYSTEM, MODELS WITH TEE FOR WATER RETURN LINE, FROM AIR COMPRESSOR (SE ITEMS 5 & 8) (09) - CHASSIS/ATTACHMENTS

1

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

BARB FITTING - 90 degree, at air compressor

1шт.

2

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

8шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

4

A16764

VALVE

SHUTOFF VALVE - at water pump

1шт.

4a

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, used with Ref. 4B barb fitting, if usd

1шт.

4b

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

BARB FITTING - 90 degree, used with Ref. 4A street elbow, if used

1шт.

5

REF

INSTRUCTION

HOSE - return, tee to air compressor, 29" (737 mm) long, cut from A42610 bulk

1шт.

6

REF

INSTRUCTION

HOSE - return, tee to water pump, 13" (330 mm) long, cut from A42610 bulk

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

L106087

TEE - hoses

1шт.

9

R21385

CLAMP

- hose, no longer used on Ref. 6 hose, not needed

1-2шт.

10

REF

INSTRUCTION

HOSE - return, 116" (2946 mm) long, cut from A42610 bulk

1шт.

11

REF

INSTRUCTION

HOSE - supply, 95" (2413 mm) long, cut from A42610 bulk

1шт.

12

R21385

CLAMP

- hoses

4шт.

13

RESERVED

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

A7808

GROMMET

- hoses at floor plate and fender

4шт.

19

F44939

HEATER TUBE

TUBE - return

1шт.

20

F44938

HEATER TUBE

TUBE - supply

1шт.

21

F64347

SEAL

INSULATOR - tubes

5шт.

22

REF

INSTRUCTION

HOSE - heater tubes to flow control valve and core, 2" (51 mm) long, cut from A42610 bulk

3шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

6шт.

24

F63865

VALVE

FLOW CONTROL VALVE - heater

1шт.

25

F45204

HEAT-EXCHANGER

CORE - heater, interchangeable with F44713 and F45210 heater cores

1шт.

26

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

F96715

SHEET

BRACKET - heater core, one-piece, no longer used, order Refs. 29 and 30, not shown

1шт.

29

F96821

BRACKET

- heater core

1шт.

30

F96820

PANEL

- lower, heater core

1шт.

31

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, slotted hex washer head, plated, No. 10 - 16 NC x 1/2", plated

6-8шт.

32

93-6

WASHER - external tooth lock, No. 10, plated

6-8шт.

33

REF

INSTRUCTION

CABLE - heater control, see Figure 375

1шт.

A42610

LARGE HOSE

HOSE - bulk, 50 ft. (1524 cm) long

1шт.
