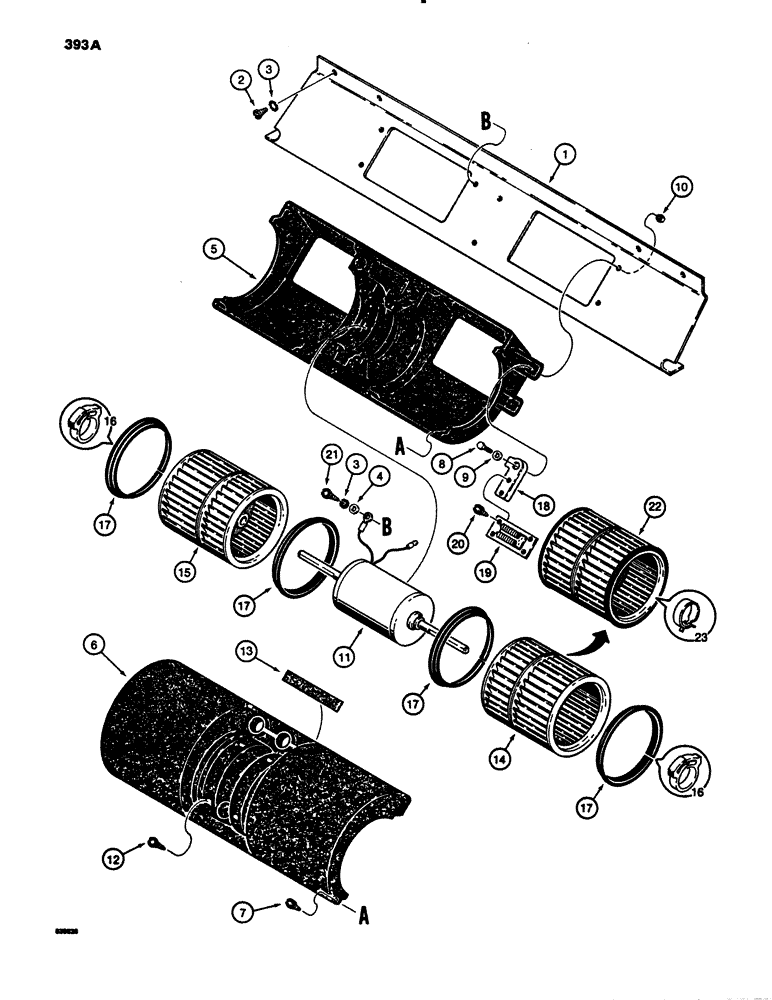

Запчасти Case 780B (393A) - CAB BLOWER, WITH PLASTIC FAN HOUSING, IF USED (09) - CHASSIS/ATTACHMENTS

1

F45208

BRACKET

- blower mounting

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, indented hex washer head, No. 10 - 16 NC x 1/2", plated

4шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

7шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

3шт.

5

F64740

HOUSING

- fans, plastic, lower

1шт.

6

F64741

HOUSING

- fans, plastic, upper

1шт.

7

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, No. 8 - 16 NC x 3/4", plated

8шт.

8

16313

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4", plated

4шт.

9

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

10

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

11

F96902

MOTOR, ELECTRIC

MOTOR - blower, 24 volt

1шт.

12

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - self-tapping, No. 8 - 16 NC x 1", plated

4шт.

13

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4" (102 mm) long, cut from F64119 bulk, see below

1шт.

Part of Seal P/N F64119

1шт.

14

F45020

BLOWER,Fan, RH

FAN - blower, right-hand with offset hub, uses plastic clamp (Ref. 16) if used

1шт.

15

F45021

BLOWER,Fan

FAN - blower, left-hand, with offset hub, uses plastic clamp (Ref. 16) if used

1шт.

16

F64815

CLAMP

- plastic, fan retaining, if used

2шт.

17

F64739

RING

- plastic, fan retaining

4шт.

18

F64742

BRACKET

- resistor mounting

1шт.

19

F44903

RESISTOR

- blower

1шт.

20

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, No. 8 - 16 x 3/4", plated

2шт.

21

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, slotted hex washer head, No. 10 - 16 NC x 1/2", plated

3шт.

22

F64935

BLOWER,Fan

FAN - blower, with centered hub, uses Ref. 22 steel clamp, if used

2шт.

23

F64936

CLAMP

- steel spring, if used

2шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft. (3048 cm) long, Includes: Ref. 13

1шт.
