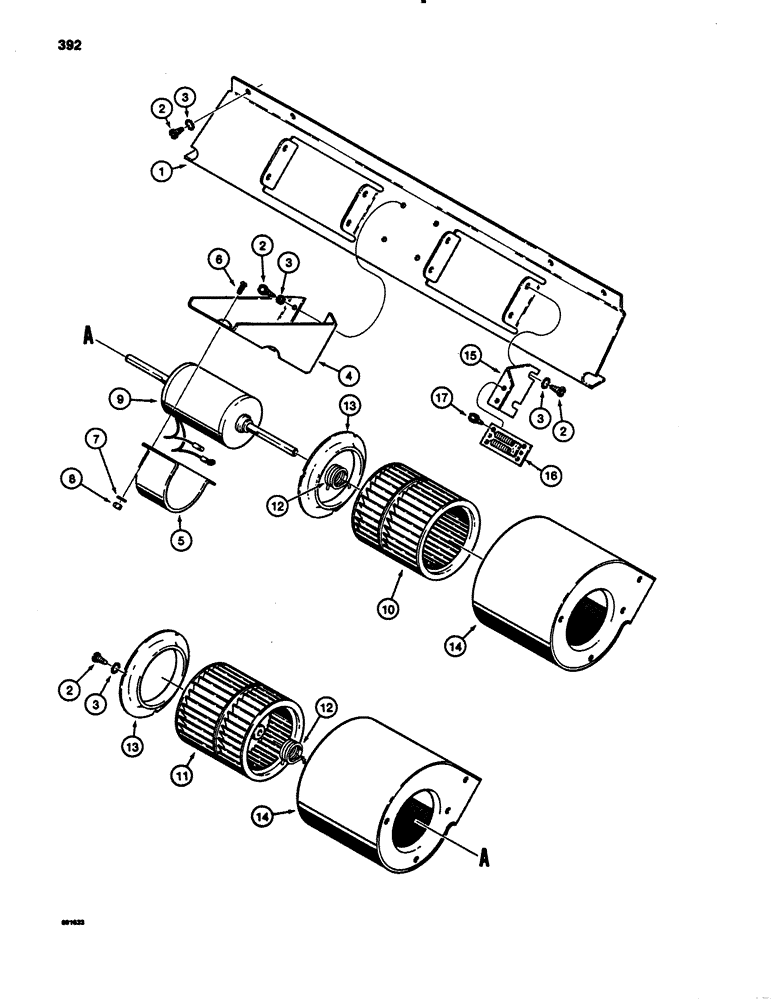

Запчасти Case 780B (392) - CAB BLOWER, WITH METAL FAN HOUSINGS, IF USED (09) - CHASSIS/ATTACHMENTS

1

F44730

BRACKET

- mounting, blower

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2", plated

20шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

20шт.

4

F44729

BRACKET

- mounting, motor to blower bracket

1шт.

5

F44728

CLAMP

-, Serial Range: motor-bracket

1шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

MACHINE SCREW - Phillips head, No. 10 - 24 NC x 1/2", plated

4шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

9

F96902

MOTOR, ELECTRIC

MOTOR - blower

1шт.

10

F45020

BLOWER,Fan, RH

FAN - blower, right-hand

1шт.

11

F45021

BLOWER,Fan

FAN - blower, left-hand

1шт.

12

F44948

SPRING

CLIP - spring, motor

2шт.

13

F63655

RETAINER

COVER - ring, fan end

2шт.

14

F96724

HOUSING

- fan, metal

2шт.

15

F41976

BRACKET

- resistor mounting

1шт.

16

F44903

RESISTOR

- blower, 24 volt

1шт.

17

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2", plated

2шт.
