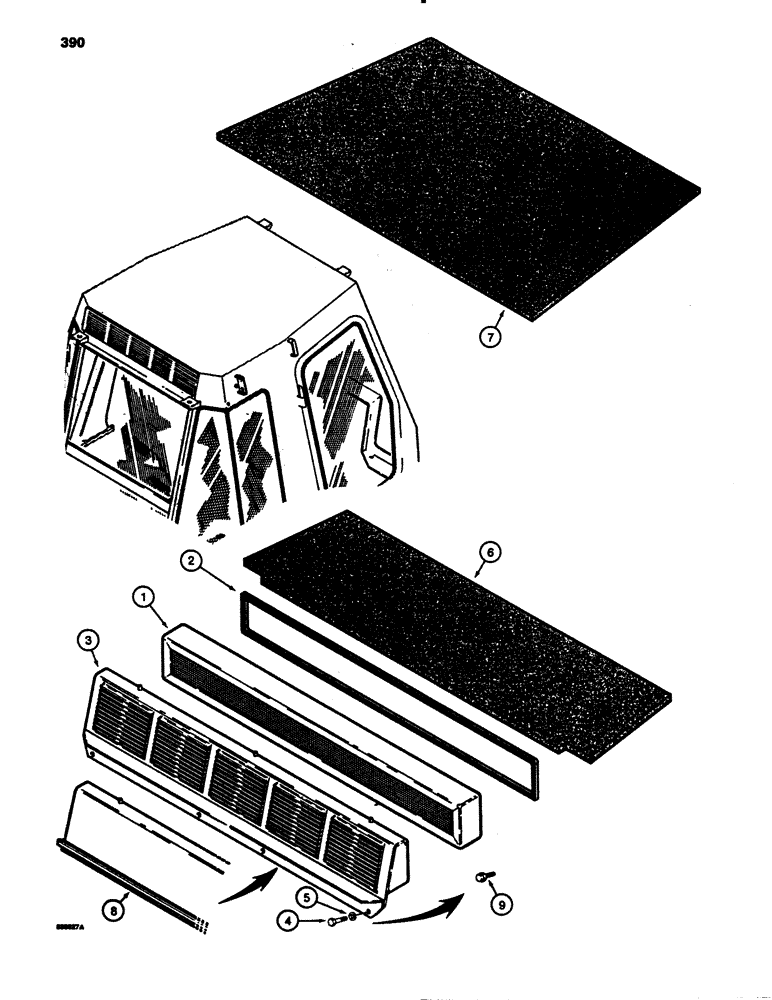

Запчасти Case 780B (390) - CAB AIR FILTER AND ROOF INSULATION (09) - CHASSIS/ATTACHMENTS

1

F44714

FILTER

- air

1шт.

2

F44774

SEAL

- filter

1шт.

3

F96711

GUARD

COVER - filter, with louvers, if used

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used, may be replaced with Ref. 9 bolt

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used with Ref. 4 bolt only, if used 5/16"

4шт.

6

F44800

LINING

- roof, rear

1шт.

7

F44799

LINING

- roof, front

1шт.

8

F96714

COVER

- filter, without louvers, if used

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

If used Hex Flg, 5/16"-18 x 1/2", Serr

4шт.
