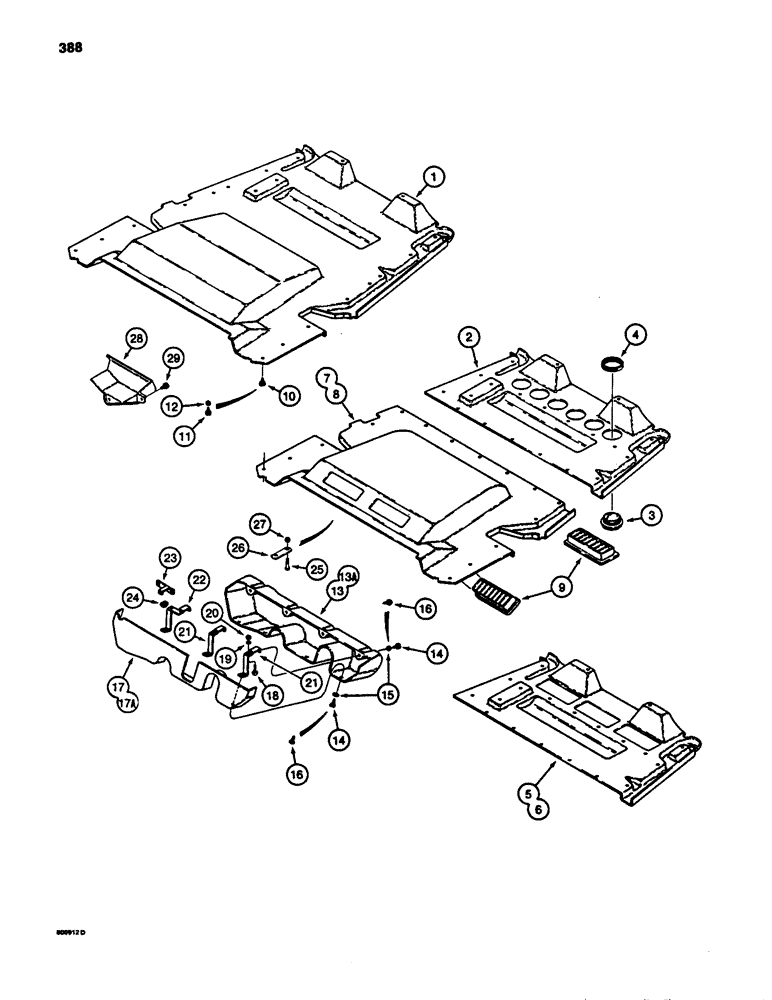

Запчасти Case 780B (388) - CAB HEADLINER A WINDSHIELD WIPER COVERS (09) - CHASSIS/ATTACHMENTS

1

F45200

COVER ASSY

HEADLINER - black, if used, cab models without blower, air conditioning and/or heater, no longer available, order F45265 brown headliner

1шт.

1

F45265

HEADLINER - brown, cab models without blower, air conditioning and/or heater

1шт.

2

F41978

JOURNAL

HEADLINER - front, black, models with blower air conditioning, and/or heater, with ball-type louvers, no longer used, order F45266 headliner (item 6) and three F89948 slat-type louvers (item 9)

1шт.

3

F64132

GUARD

LOUVER - ball-type, if used

6шт.

4

F64131

RING

RETAINING RING - louver, if used

6шт.

5

F45202

PLATE

HEADLINER - front, black, models with blower, air conditioning, and/or heater, with slat-type louvers, if used

1шт.

6

F45266

MOLDING

HEADLINER - front, brown, models with blower, air conditioner and/or heater, with slat-type louvers, if used

1шт.

7

F41797

HEADLINER - rear, black, models with blower, air conditioner, and/or heater, with one slat-type louver, no longer available, order F45267 headliner (item 8) and one F89948 louver (item 9)

1шт.

8

F45267

LINING

HEADLINER - rear, brown, models with blower, air conditioning, and/or heater, with two slat-type louvers, if used

1шт.

8

F45201

LINING

HEADLINER - rear, black, models with blower, air conditioning, and/or heater, with two slat-type louvers, if used

1шт.

9

F89948

GUARD

LOUVER - slat-type

1-5шт.

10

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips head, with washer, No. 10 - 16 NC 3/4", interchangeable with Refs. 11 and 12

18-34шт.

11

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, Phillips head, No. 10 - 16 NC x 3/4", plated, if used

18-34шт.

12

F63765

WASHER

- shoulder, special, if used

18-34шт.

13

F42918

COVER

- rear windshield wiper, front, black, used with Ref. 17, if used

1шт.

13a

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

COVER - rear windshield wiper, front, brown, used with Ref. 17A. if used

1шт.

14

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, Phillips head, No. 10 - 16 NC x 3/4", plated, if used

8шт.

15

F64315

WASHER

- special, if used

8шт.

16

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips head, with washer, No. 10 - 16 NC x 3/4", interchangeable with Refs. 14 and 15

8шт.

17

F42781

COVER

- rear windshield wiper, rear, black, used with Ref. 13, if used

1шт.

17a

F45221

MOLDING

COVER - rear windshield wiper, rear, brown, used with Ref. 13A, if used

1шт.

18

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

- 1/4" - 20 NC x 5/8", plated

3шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

21

F42837

BRACKET

- cover mounting, straight, if used

2шт.

22

F41977

BRACKET

- cover mounting, bent, if used

1шт.

23

F42836

BRACKET

- wiper cover support, if used

1шт.

24

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

25

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

MACHINE SCREW - 1/4" - 20 NC x 3/8", plated if used

3шт.

26

129-723

RETAINER

- headliner, if used

3шт.

27

131-1280

JAM NUT,Jam, 1/4"-20

JAM NUT - hex, 1/4" - 20 NC, plated, if used

3шт.

28

F45306

COVER

- rear windshield wiper, one-piece, if used

1шт.

29

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips head, with washer, No. 10 - 16 NC x 3/4"

1шт.
