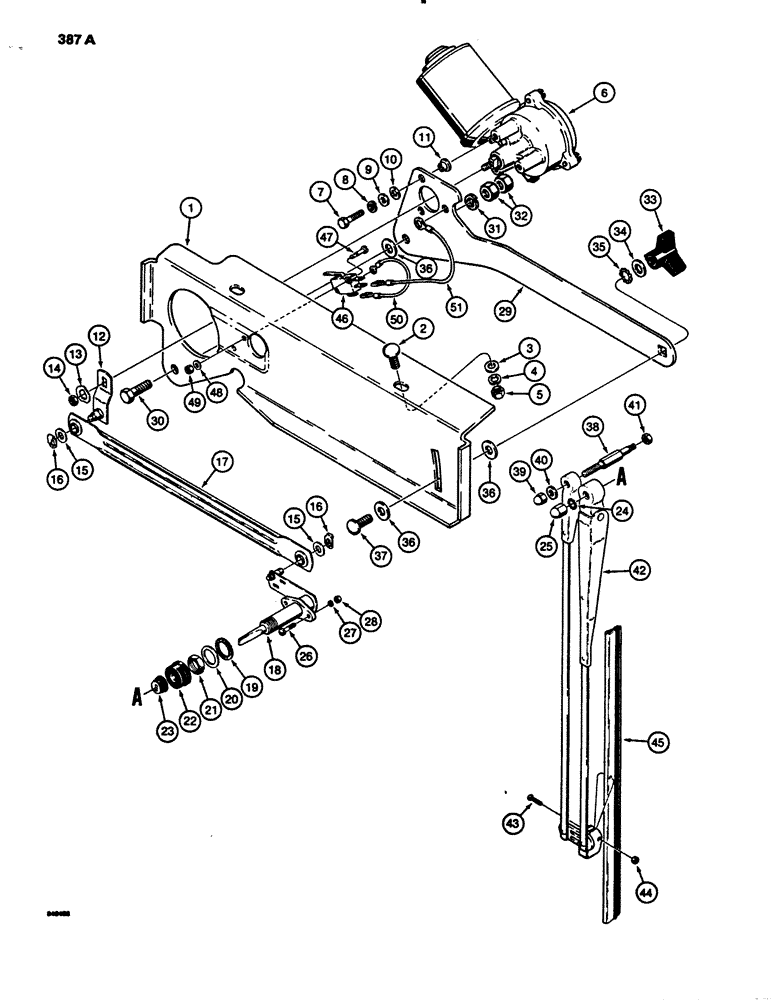

Запчасти Case 780B (387A) - CAB REAR WINDSHIELD WIPER, MODELS WITH LONG POSITIONING LEVER( ITEM 29) IF USED (09) - CHASSIS/ATTACHMENTS

1

F45269

BRACKET

- wiper assembly mounting

1шт.

2

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

- 5/16" - 18 NC x 3/4", plated

2шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

F93654

WIPER MOTOR

MOTOR ASSEMBLY - rear windshield wiper, 24 volt, parts list Figure 376

1шт.

7

114-7

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

3шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

9

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

3шт.

10

F64384

WASHER

- nylon

3шт.

11

F44834

BUSHING

- nylon

3шт.

12

F64210

LEVER

ARM - drive

1шт.

13

D71411

WASHER

- wave

1шт.

14

F44452

LOCK NUT

- special, self-locking

1шт.

15

A22431

WASHER

- drive link

2шт.

16

D71414

CLIP

- spring

2шт.

17

F44754

LINK

- drive arm to pivot shaft

1шт.

D71415

SHAFT

ASSEMBLY - pivot, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

19

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

20

D71418

WASHER

- steel

1шт.

21

D71419

NUT

- shaft

1шт.

22

D71420

CAP

- shaft

1шт.

23

D71421

TOOL

DRIVER - knurled

1шт.

24

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

25

D71422

NUT

DOME NUT - shaft

1шт.

26

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

MACHINE SCREW - Fillister head slotted, No. 10 - 24 NC x 5/8"

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

28

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

29

F45268

LEVER

- wiper positioning

1шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

33

F63415

KNOB

- wiper positioning lever

1шт.

34

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

35

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

36

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- plastic

3шт.

37

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

- 5/16" - 18 NC x 3/4", plated

1шт.

38

F43960

STUD

- wiper arm mounting

1шт.

39

129-642

CROWN NUT,Crown, #10-24

DOME NUT - hex, No. 10 - 24 NC, plated

1шт.

40

195-513

WASHER,#10

- flat, No. 10, plated

1шт.

41

425-154

JAM NUT,Jam, 1/4"-28, G5

JAM NUT - hex, No. 10 - 24 NC, plated

1шт.

42

F45284

ARM

- windshield wiper, 17" (432 mm) long, Includes: Ref. 43 and 44

1шт.

43

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head slotted, No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

44

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

45

F43574

WIPER BLADE

BLADE - windshield wiper, 14" (356 mm) long

1шт.

46

F43348

SWITCH

- windshield wiper arm return

1шт.

47

182-575

SCREW,Cross Pan Hd, #4-40 x 3/4"

MACHINE SCREW - pan head slotted, No. 4 - 40 NC x 3/4", plated

2шт.

48

195-505

WASHER,#4

2шт.

49

131-1409

LOCK NUT,#4-40, GB

NUT, LOCK, #4-40, GB

2шт.

50

F43620

ELECTRICAL WIRE

WIRE - ground

1шт.

51

F45272

ELECTRICAL WIRE

WIRE - switch to windshield wiper motor

1шт.

52

F45339

DECAL

- windshield wiper position, not shown, see Figure 414

1шт.
